Section 6 (Engine Control System - 3.5L)
>>
Basic Service Procedure
>>
Idle Speed/Ignition Timing/Idle Mixture Ratio Adjustment
>>
Overall Inspection Sequence
Overall Inspection Sequence
WARNING:
This page is about a different variant/trim than selected.

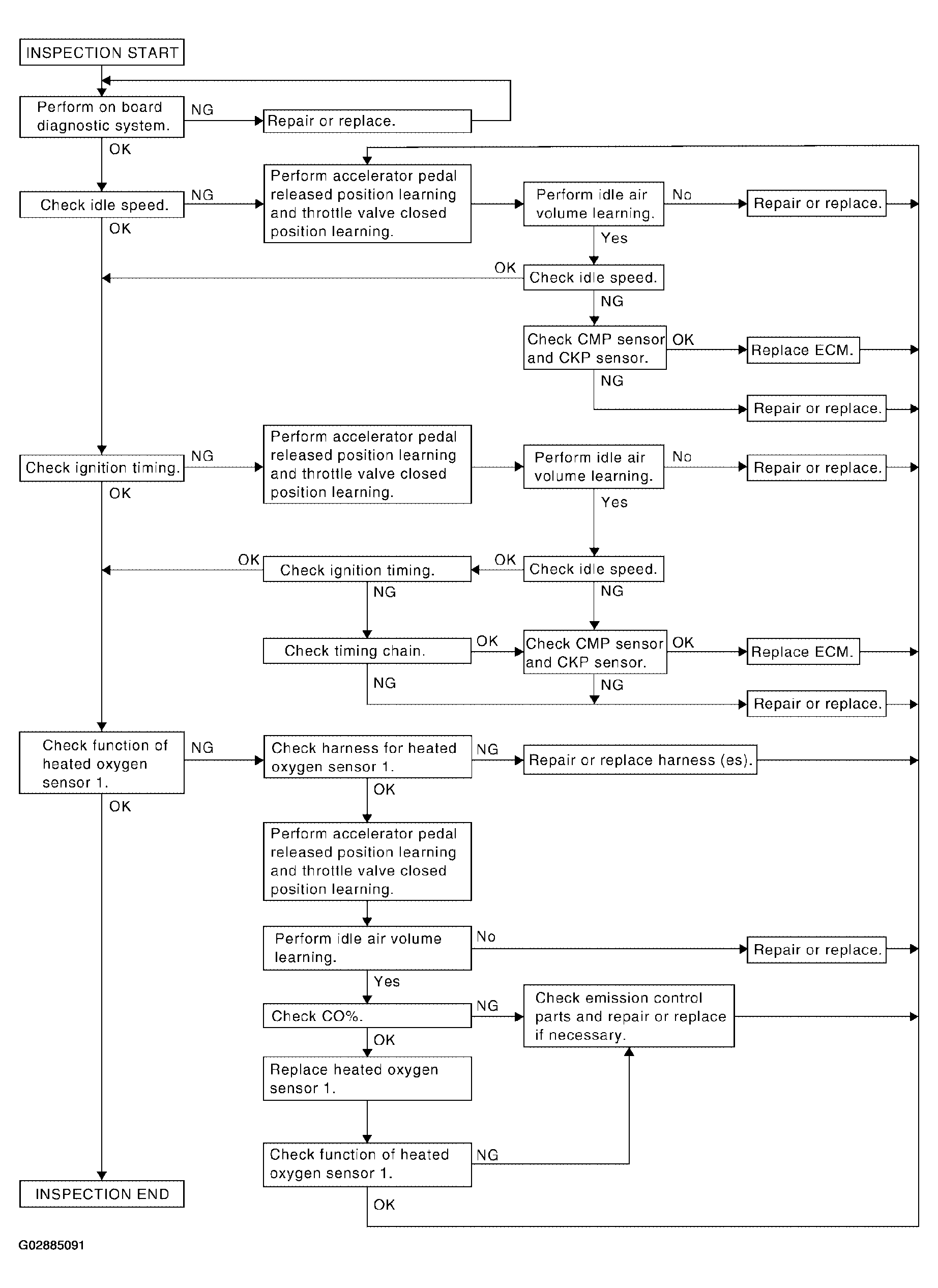

Fig 1: Overall Inspection Sequence Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
