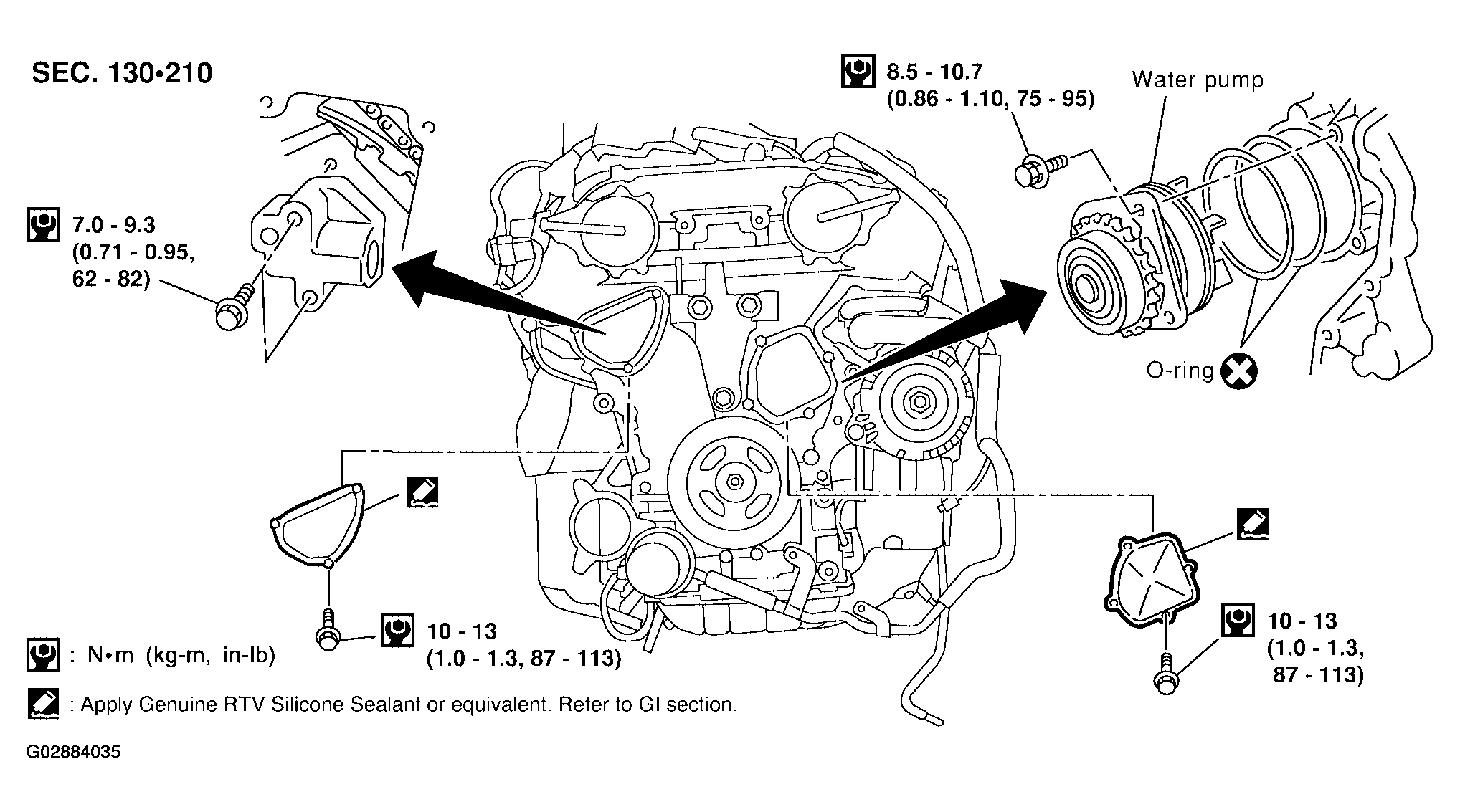

Removal and Installation: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- When removing water pump assembly, be careful not to get coolant on drive belt.
- Water pump cannot be disassembled and should be replaced as a unit.
- After installing water pump, connect hose and clamp securely, then check for leaks using radiator cap tester.
