Disassembly and Assembly: Preparation

WARNING: This page is about a different variant/trim than selected.
  1. Attach the spacer to the tip of the radiator plate pliers A. Spacer specification: 1.5 mm (0.059 in) thick x 18 mm (0.71 in) wide x 8.5 mm (0.335 in) long.
  2. Make sure that when radiator plate pliers A are closed dimension H" is approx. 7.6 mm (0.299 in).
  3. Adjust dimension H" with the spacer, if necessary.

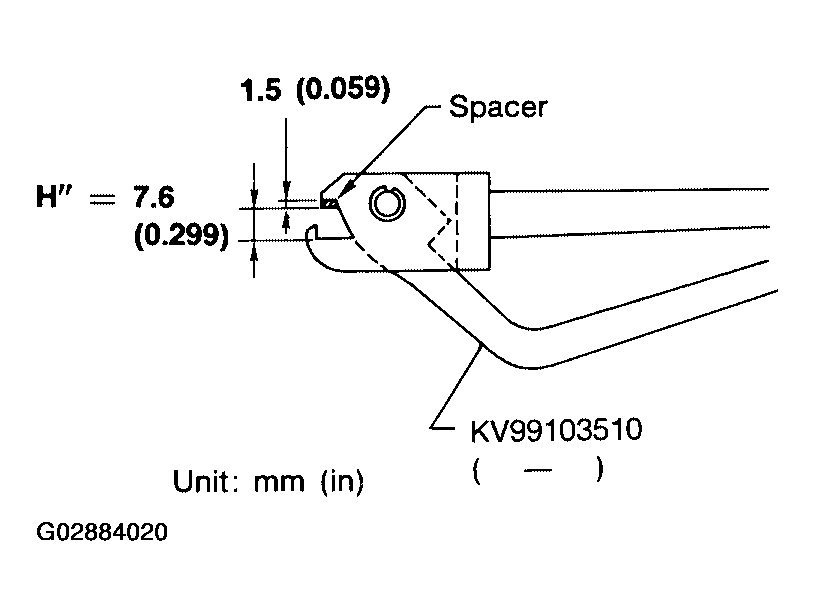

    Fig 1: Attaching Spacer To Tip Of Radiator Plate Pliers
    G02884020Courtesy of NISSAN MOTOR CO., U.S.A.
