Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

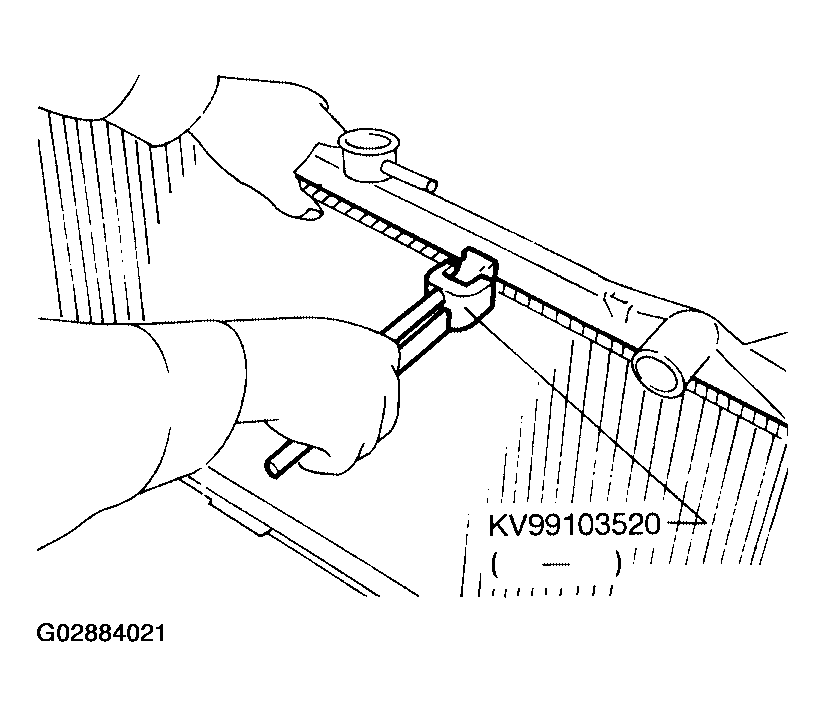

Remove the tank with Tool.

Fig 1: Removing Tank With Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

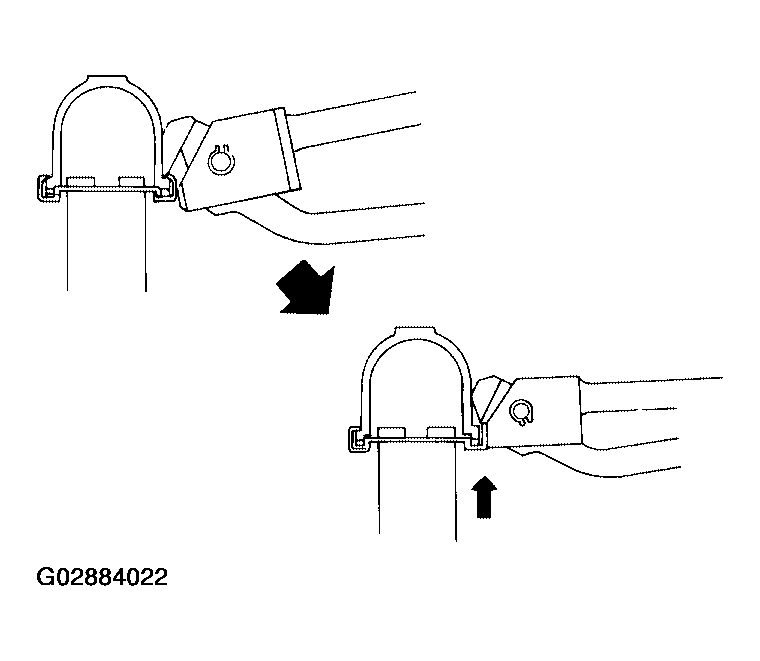

- Grip the crimped edge and bend it upwards so that Tool slips off.
  CAUTION: Do not bend excessively.

  Fig 2: Griping Crimped Edge
  Courtesy of NISSAN MOTOR CO., U.S.A.

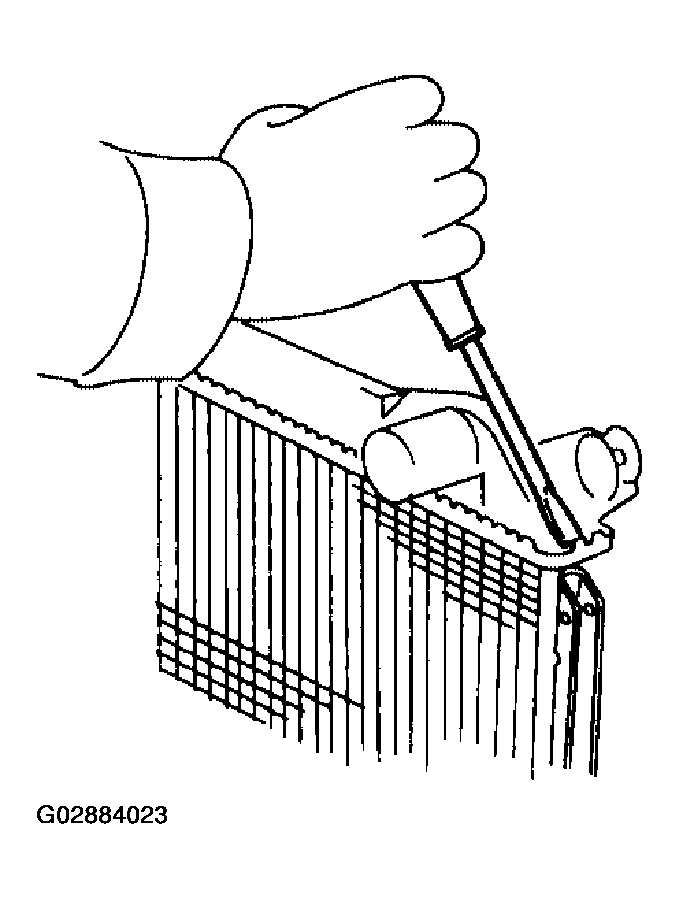

- In areas where Tool cannot be used, use a screwdriver to bend the edge up.
  CAUTION: Be careful not to damage tank.

  Fig 3: Use Screwdriver To Bend Edge Up
  Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure the edge stands straight up.
Remove oil cooler from tank (A/T model only).

Fig 4: Removing Oil Cooler From Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
