Special Service Tools

WARNING: This page is about a different variant/trim than selected.

The actual shapes of Kent-Moore tools may from those of special service tools illustrated here.

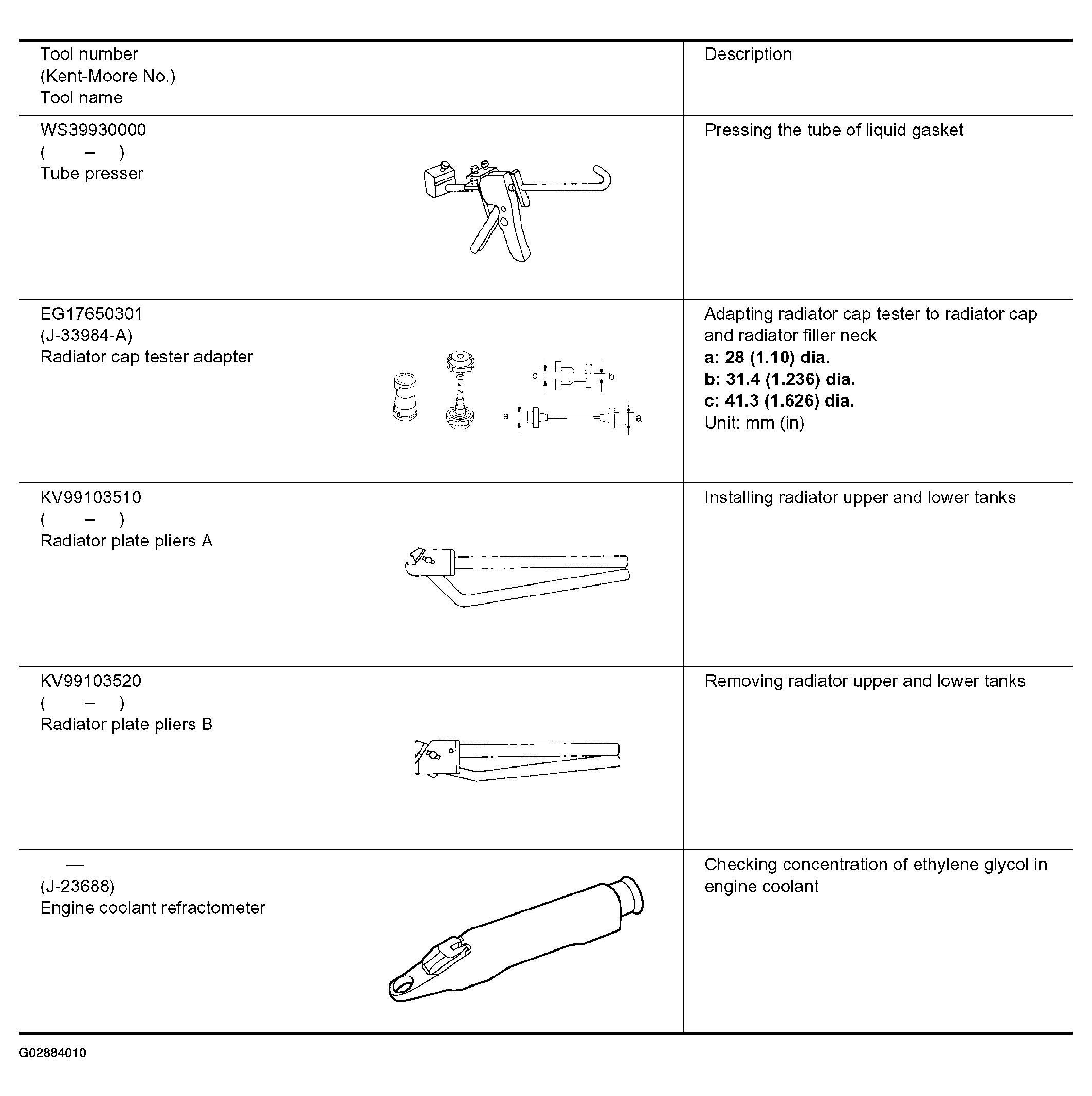

Fig 1: Identifying Special Service Tools
G02884010Courtesy of NISSAN MOTOR CO., U.S.A.
