Regulator Valve Clearance
WARNING: This page is about a different variant/trim than selected.

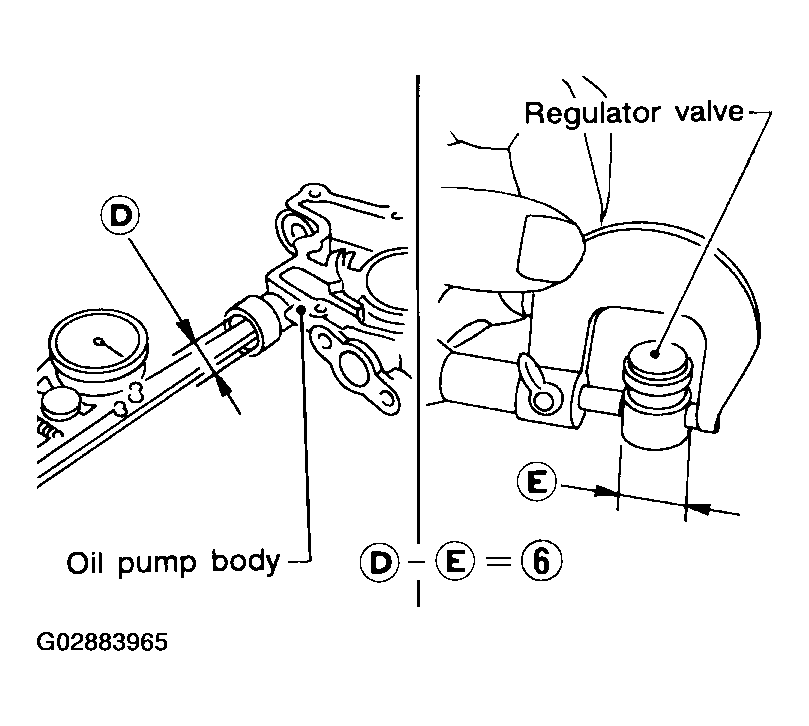

(Clearance 6) = D (Valve hole diameter) - E (Outer diameter of valve)
Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
If it exceeds the standard, replace the oil pump body.
CAUTION:
Coat regulator valve with engine oil. Check that it falls smoothly into the valve hole by its own weight.
