Section 4 (Engine Lubrication System - 3.5 L)
>>
Oil Cooler
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

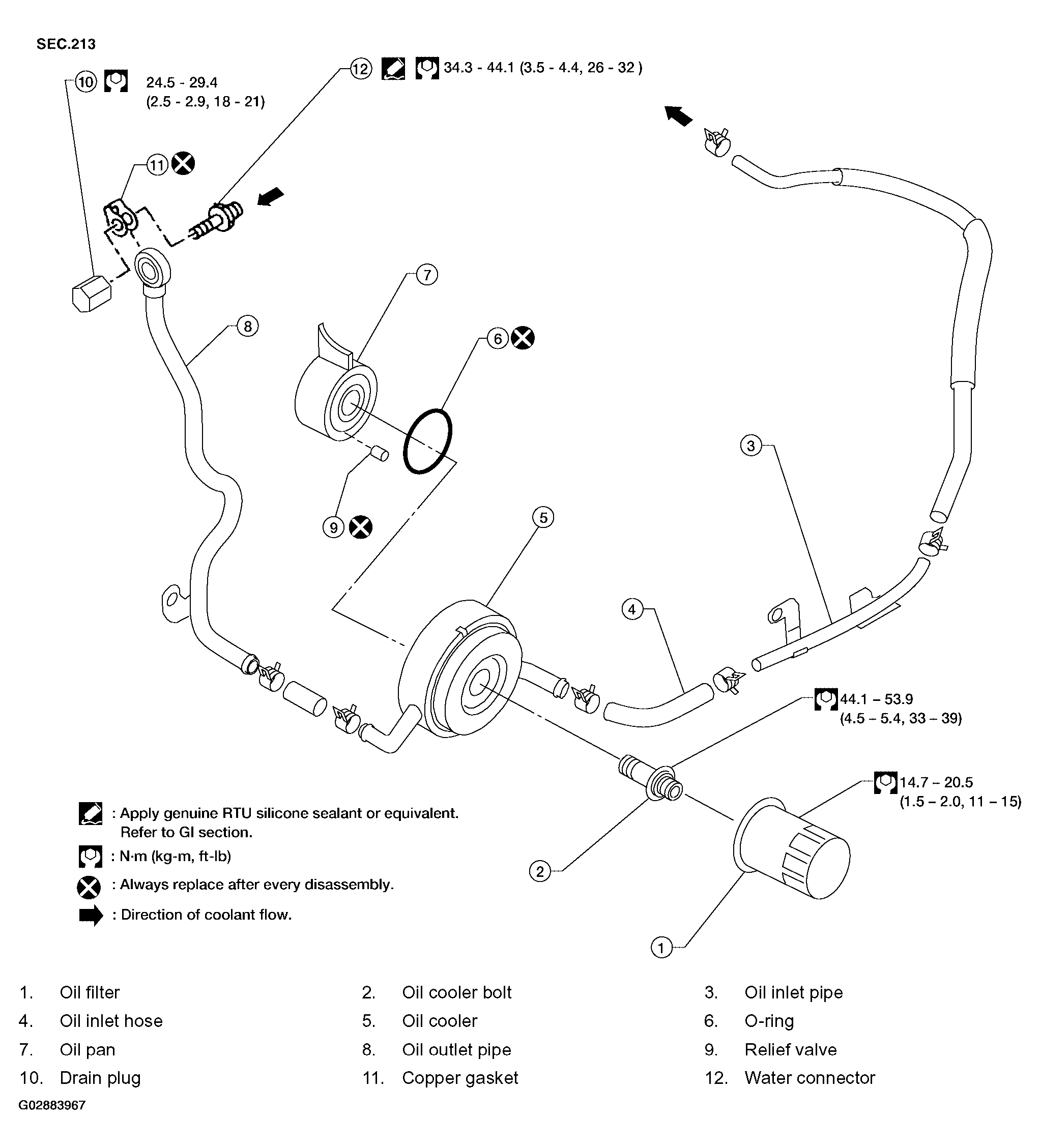

Fig 1: Removing Oil Cooler Components
Courtesy of NISSAN MOTOR CO., U.S.A.
