Oil Pressure Check
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Be careful not to burn yourself, as engine oil may be hot.
- For M/T models, put the gearshift lever in the Neutral "N" position. For A/T models, put the selector lever in the Park "P" position.
- Check the oil level.
- Disconnect oil pressure switch harness connector.
- Remove oil pressure switch.

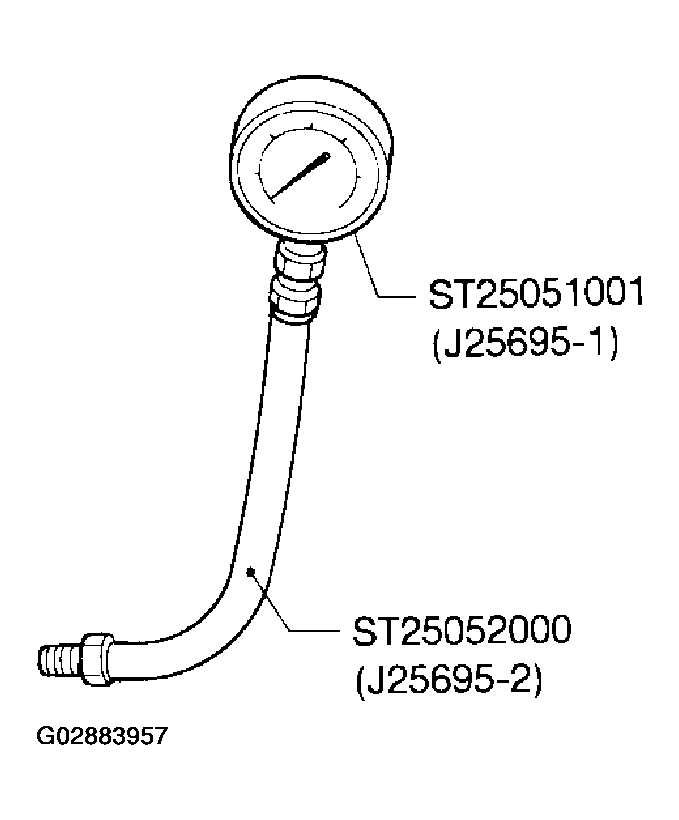

- Install the pressure gauge.
- Start the engine and warm it up to normal operating temperature.
- Check oil pressure with engine running under no-load.ENGINE SPEED RPM AND APPROXIMATE DISCHARGE PRESSURE KPA (KG/CM
Engine speed rpm Approximate discharge pressure kPa (kg/cm2 , psi) Idle speed More than 98 (1.0, 14) 2,000 294 (3.0, 43) If difference is extreme, check oil passage and oil pump for oil leaks.
- After the inspections, install the oil pressure switch as follows:
- Remove the old sealant adhering to switch and engine.
- Apply thread sealant and tighten the oil pressure switch to specification.
Use Genuine High Performance Thread Sealant, or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS "
Oil pressure switch : 13 - 17 N.m (1.25 - 1.75 kg.m, 9 - 12 ft.lb)
