Oil Level

WARNING: This page is about a different variant/trim than selected.

NOTE:

Before starting the engine, check the oil level. If the engine is already started, stop it and allow 10 minutes before checking.
Check that the oil level is within the range as indicated on the dipstick.
If it is out of range, add oil as necessary.

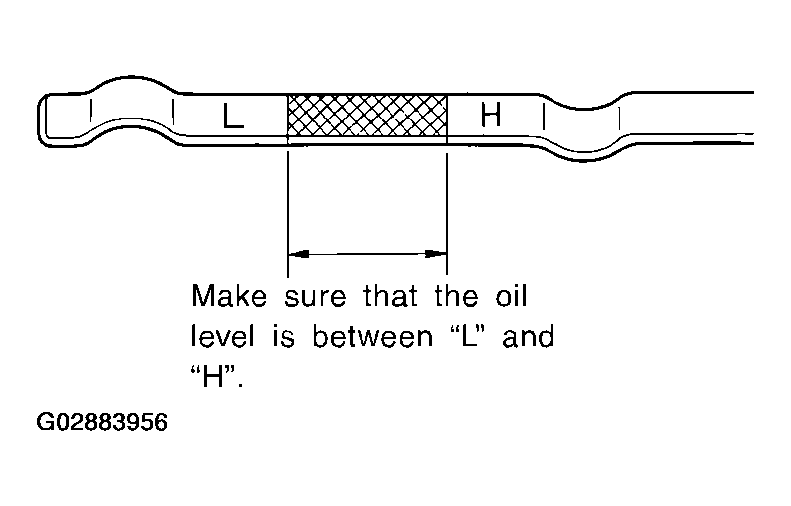

Fig 1: Identifying Engine Oil Level
Courtesy of NISSAN MOTOR CO., U.S.A.
