Timing Chain: Inspection

Check for cracks and any excessive wear at the roller links of the timing chain. Replace the timing chain as necessary.

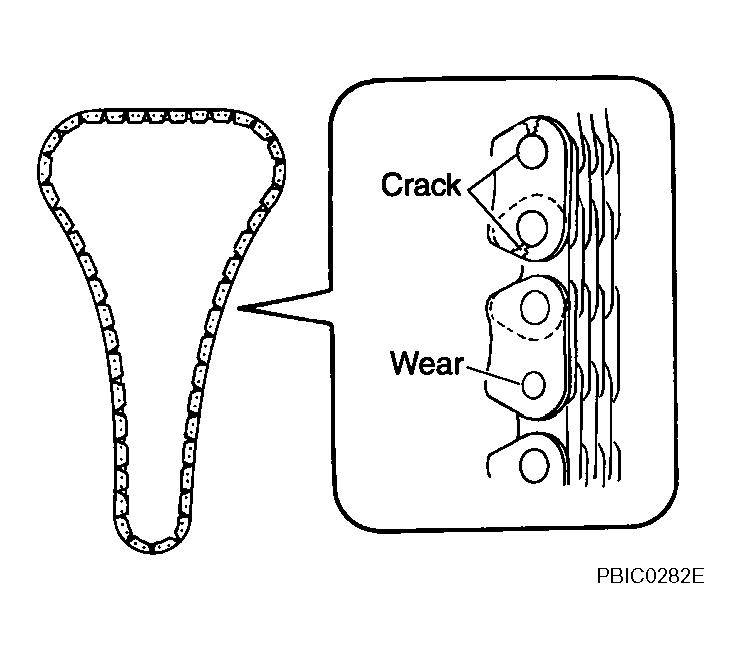

Fig 1: Inspecting Timing Chain

Courtesy of NISSAN MOTOR CO., U.S.A.
