Timing Chain: Components

WARNING: This page is about a different variant/trim than selected.

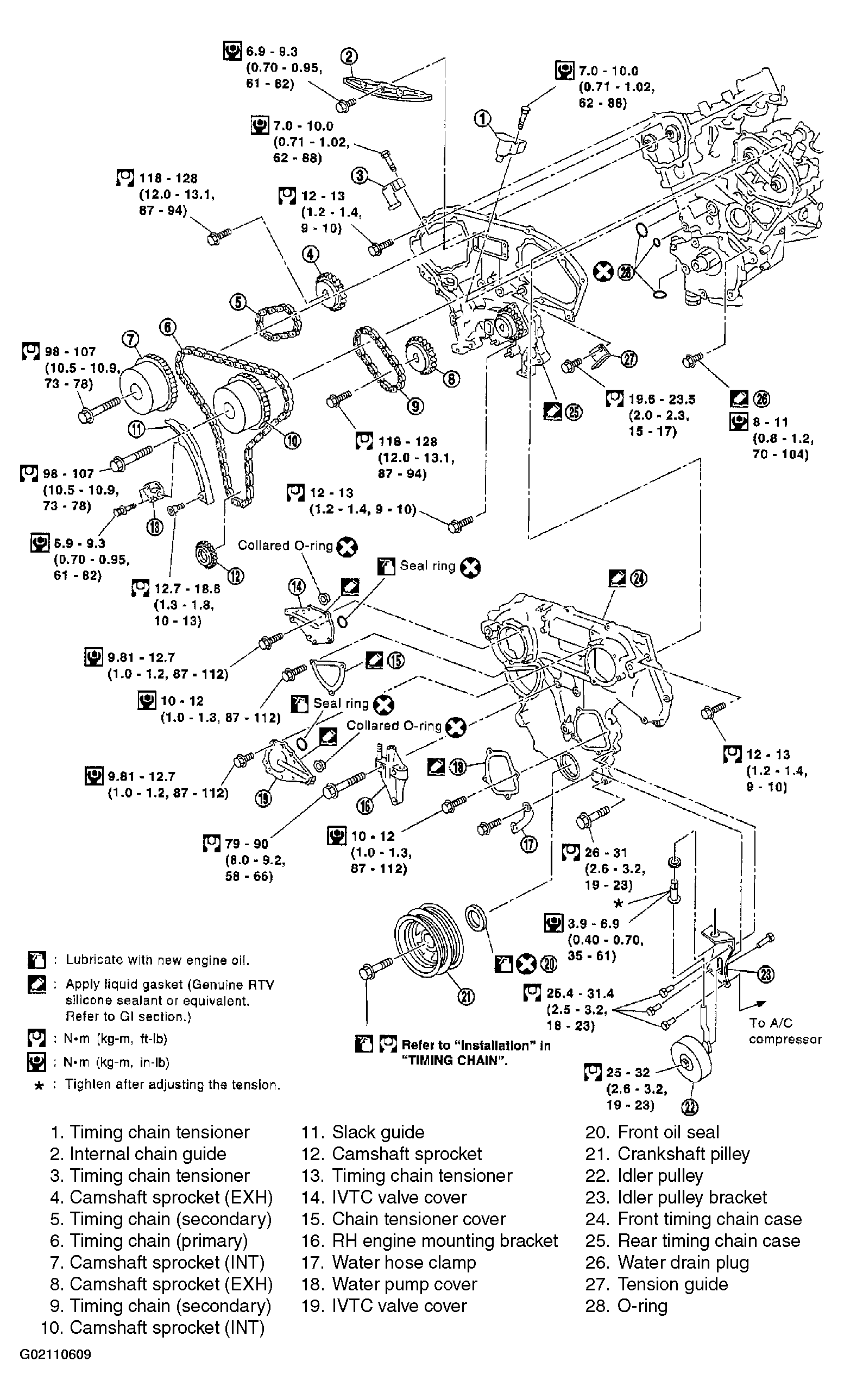

Fig 1: Exploded View Of Timing Chain Assembly With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

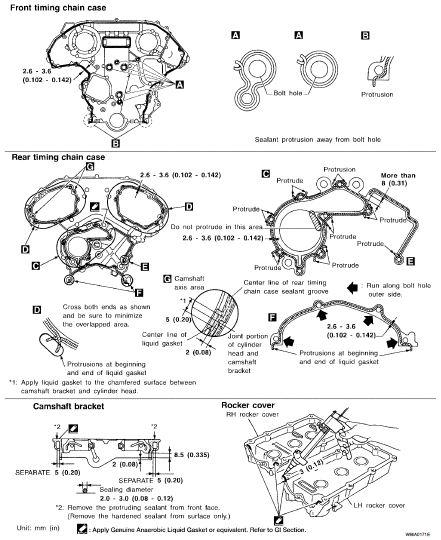

POSITION FOR APPLYING LIQUID GASKET

Fig 2: Liquid Gasket Position Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

After removing timing chain, do not turn the crankshaft and camshaft separately, or the valves will strike the pistons.
When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil.
Apply new engine oil to bolt threads and seat surfaces when installing camshaft sprockets, camshaft brackets, and crankshaft pulley.
Before disconnecting fuel hose, release fuel pressure. Refer to FUEL PRESSURE CHECK .
Before removing the upper oil pan, remove the crankshaft position sensor (POS).
Be careful not to damage sensor edges.
Do not spill engine oil or coolant on drive belts.
