Timing Chain TENSIONER: Components

WARNING: This page is about a different variant/trim than selected.

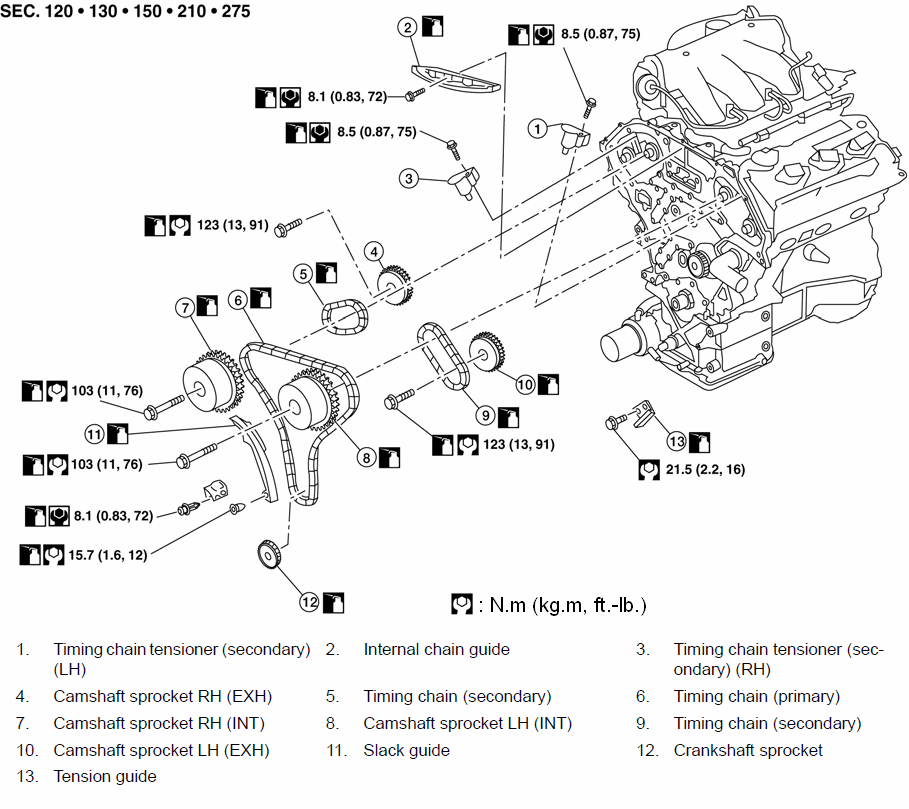

Fig 1: Exploded View Of Timing Chain Assembly & Torque Specifications (1 Of 2)
G00501272Courtesy of NISSAN MOTOR CO., U.S.A.

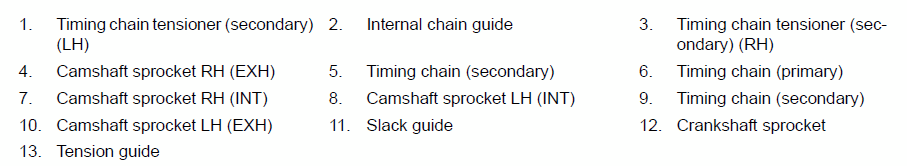

Fig 2: Exploded View Of Timing Chain Assembly & Torque Specifications (Legend) (2 Of 2)
G00501276Courtesy of NISSAN MOTOR CO., U.S.A.
