Section 3 (Engine Mechanical - 3.5L)
>>
Service Data And Specifications (SDS)
>>
Standard and Limit
>>
Valve
>>
Valve Seat
Valve Seat
WARNING:
This page is about a different variant/trim than selected.

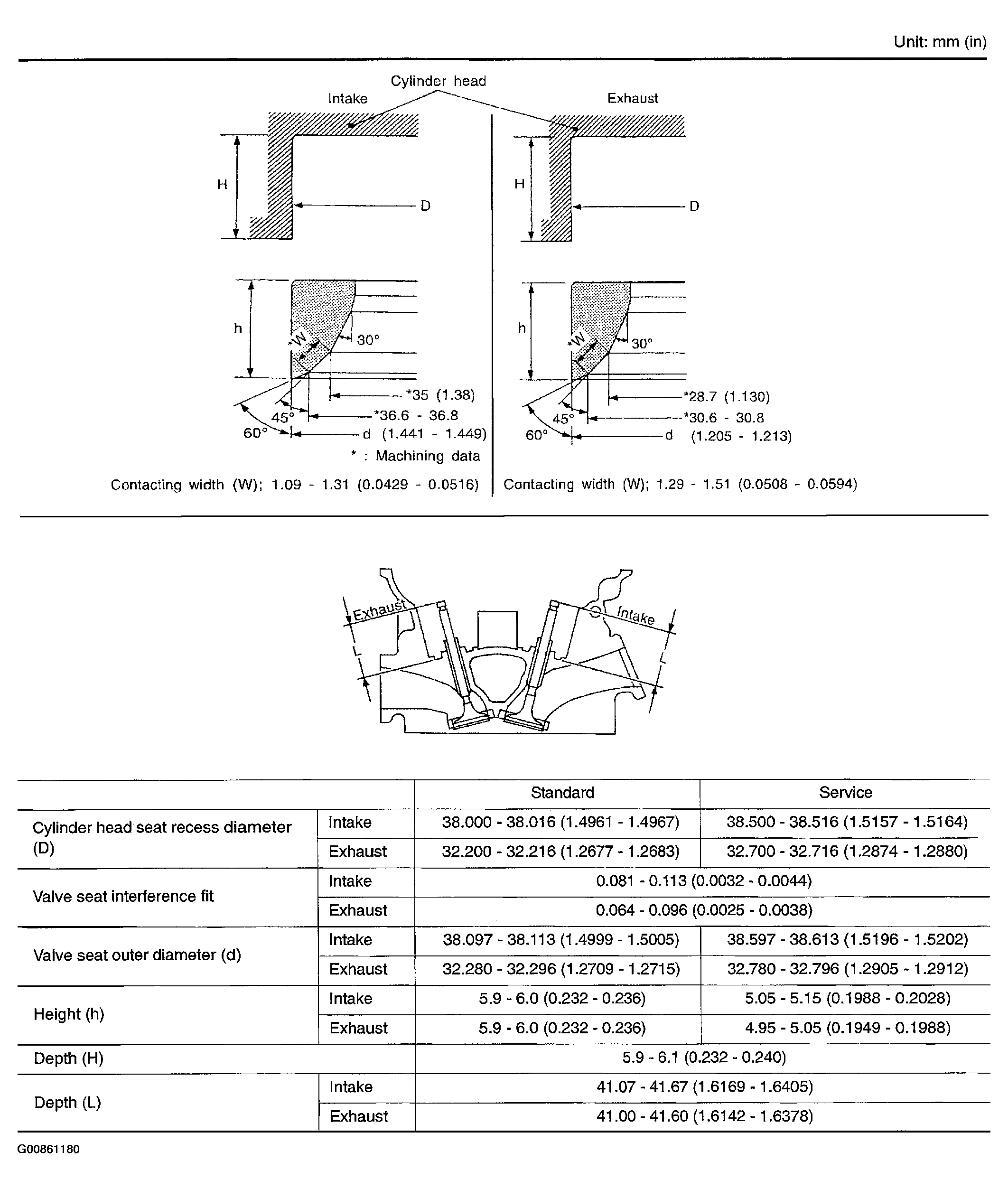

Fig 1: Valve Seat
Courtesy of NISSAN MOTOR CO., U.S.A.
