Valve Lifter

WARNING: This page is about a different variant/trim than selected.

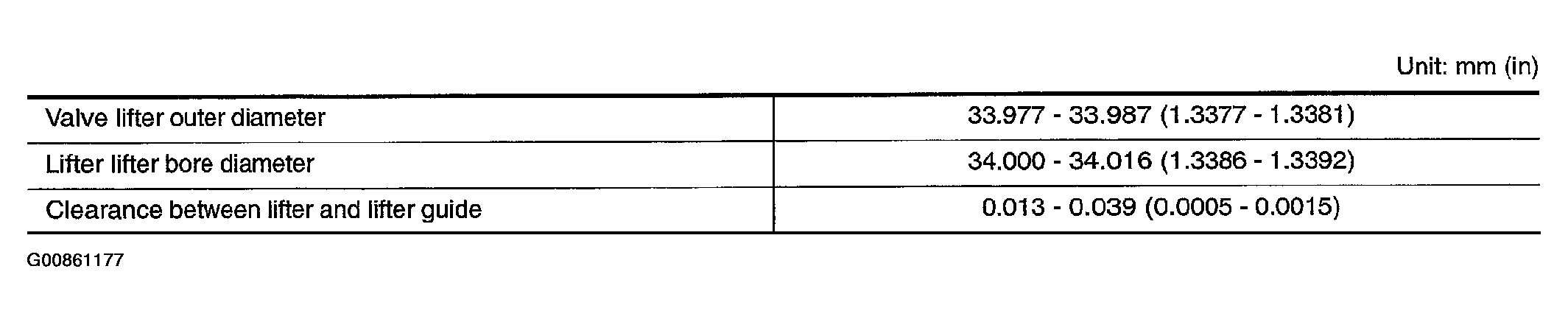

Fig 1: Valve Lifter (1 Of 2)
G00861177Courtesy of NISSAN MOTOR CO., U.S.A.

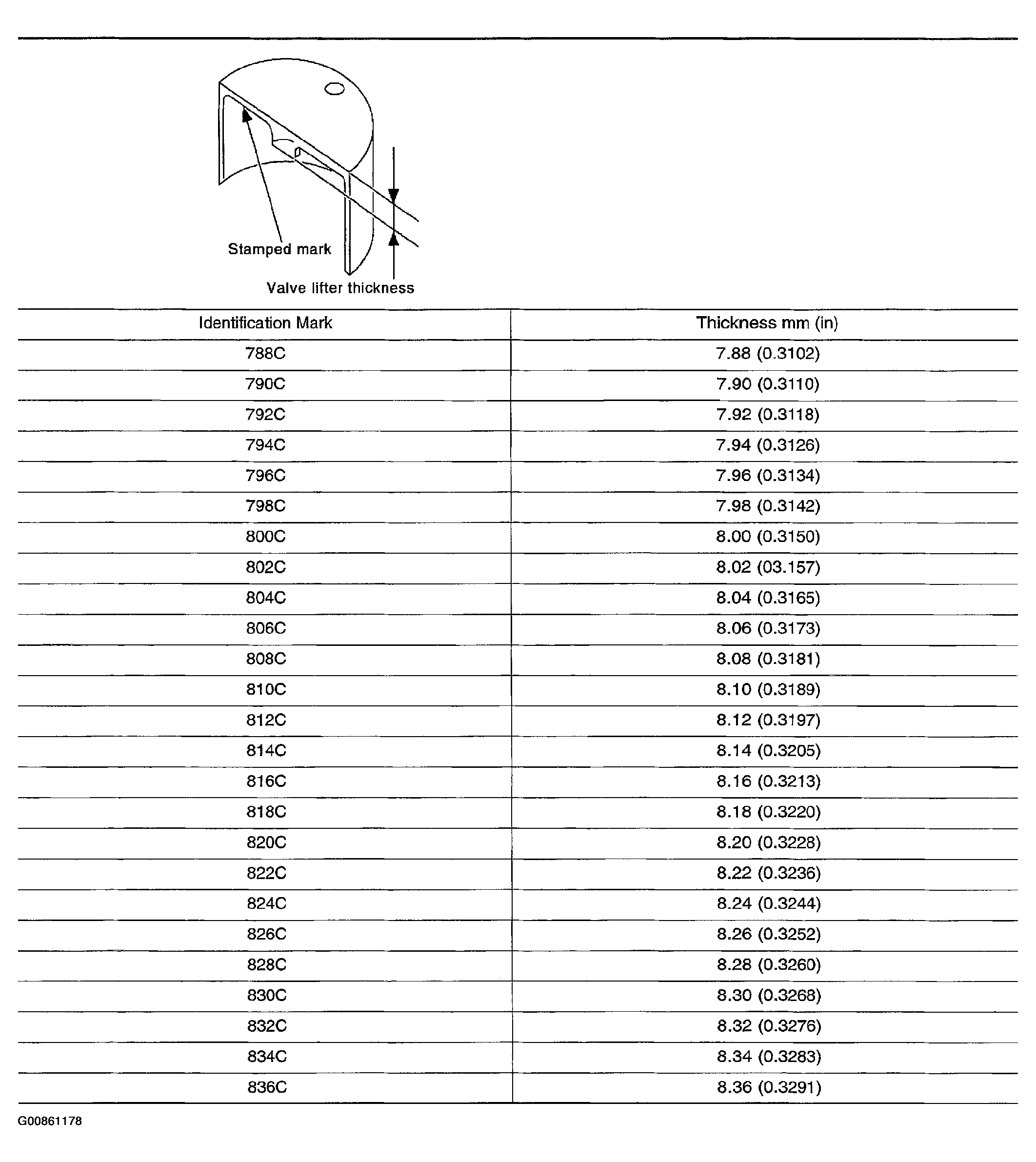

Fig 2: Valve Lifter (2 Of 2)
G00861178Courtesy of NISSAN MOTOR CO., U.S.A.
