Cylinder Block

WARNING: This page is about a different variant/trim than selected.

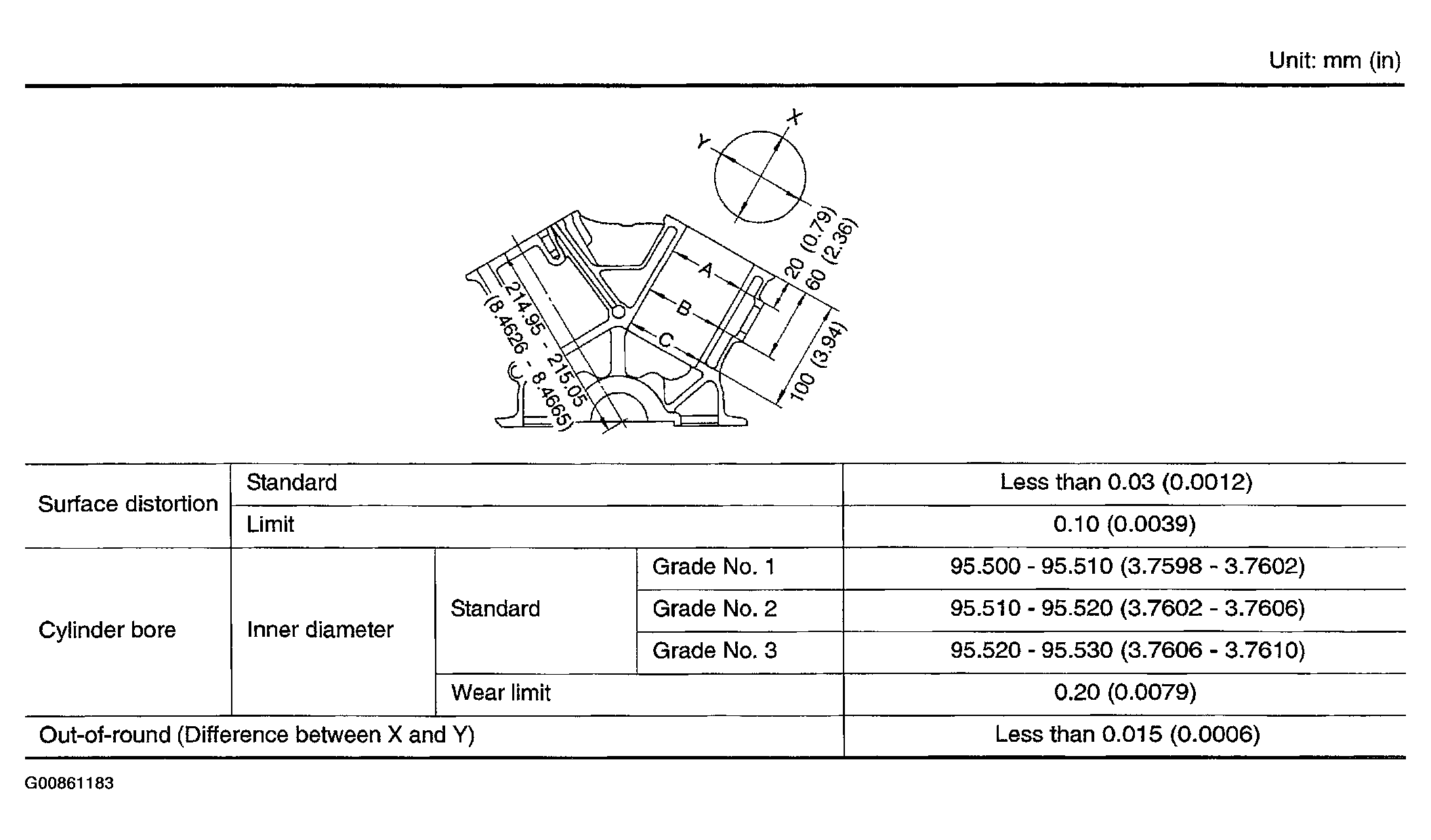

Fig 1: Cylinder Block (1 Of 2)
G00861183Courtesy of NISSAN MOTOR CO., U.S.A.

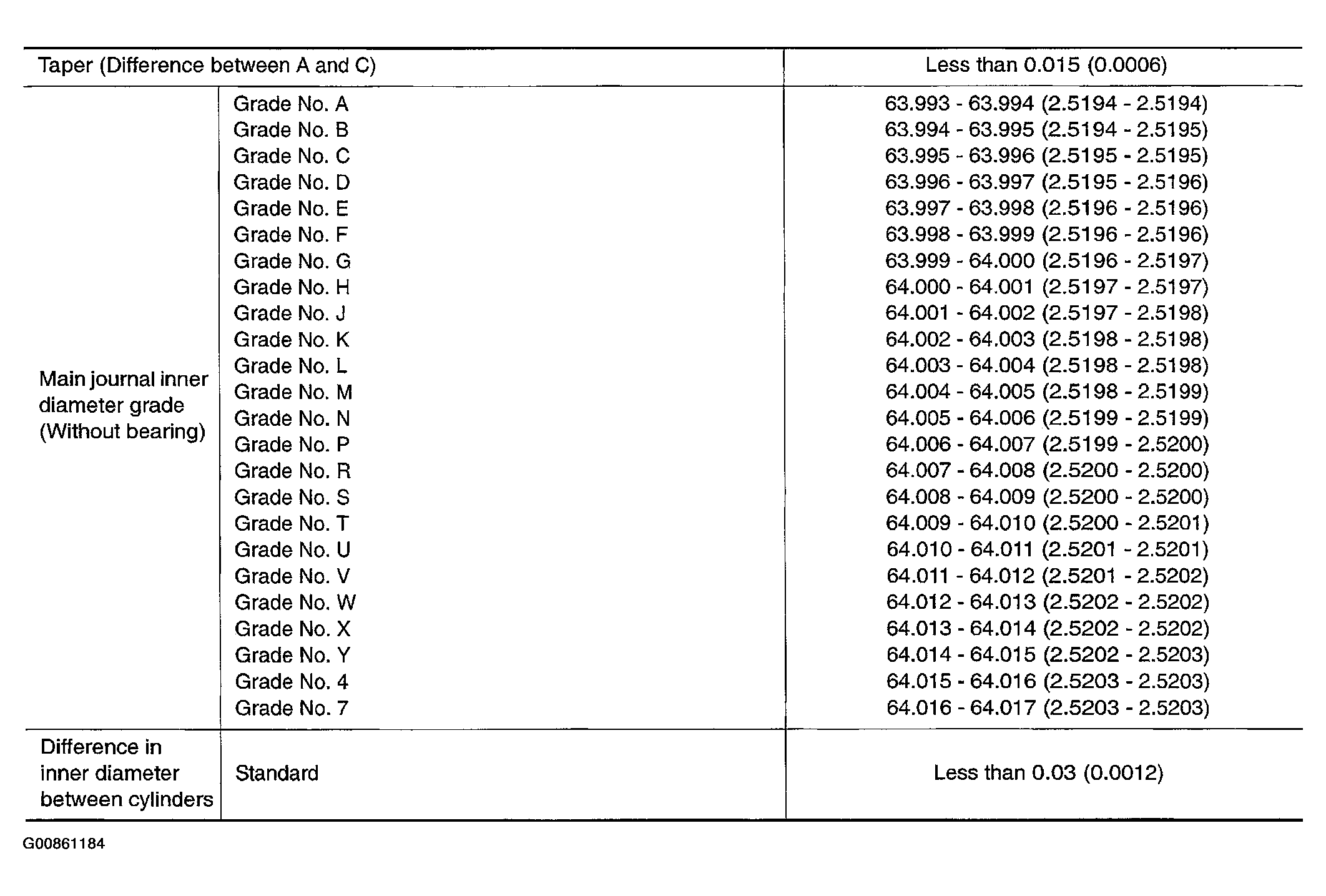

Fig 2: Cylinder Block (2 Of 2)
G00861184Courtesy of NISSAN MOTOR CO., U.S.A.
