Camshaft And Camshaft Bearing

WARNING: This page is about a different variant/trim than selected.

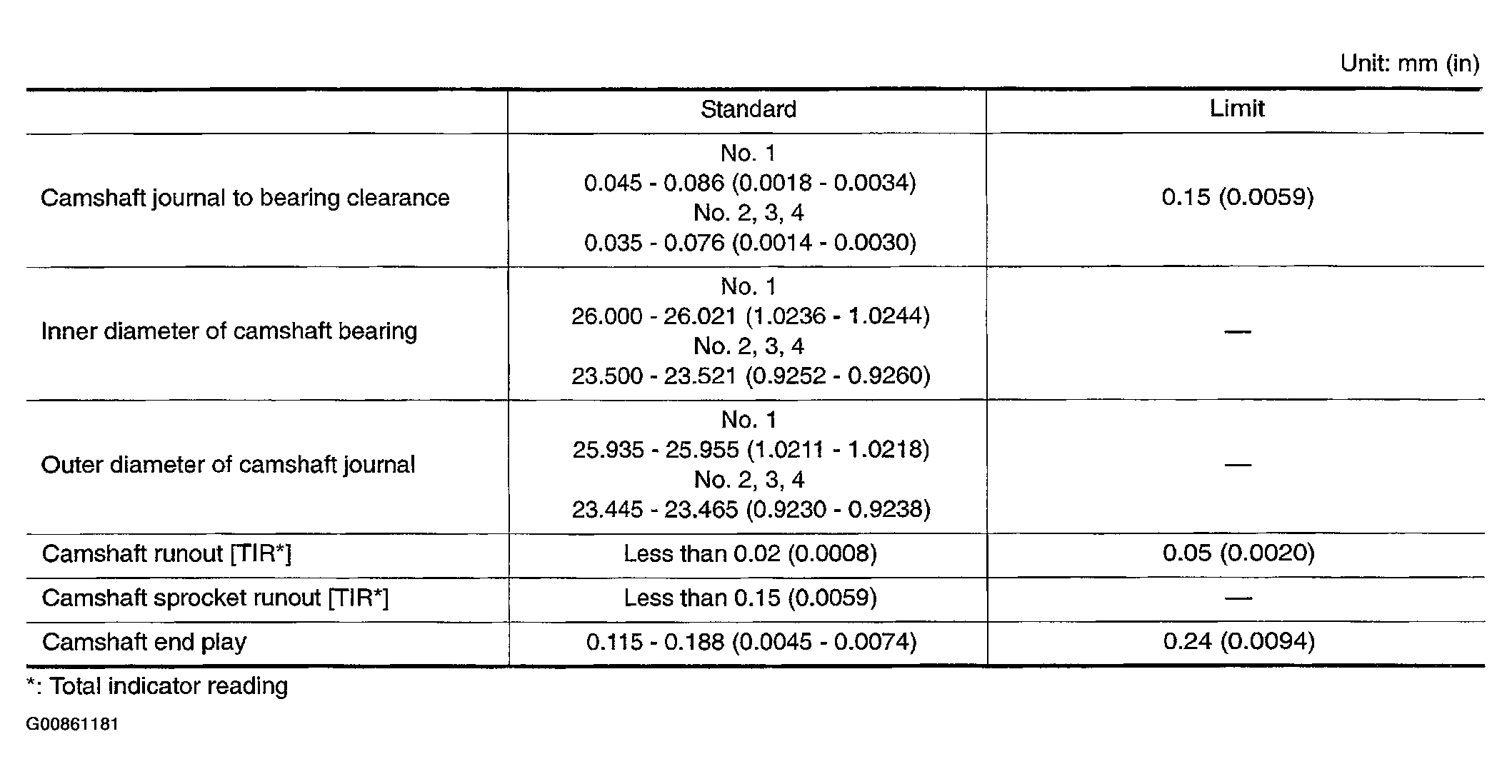

Fig 1: Camshaft & Camshaft Bearing (1 Of 2)
G00861181Courtesy of NISSAN MOTOR CO., U.S.A.

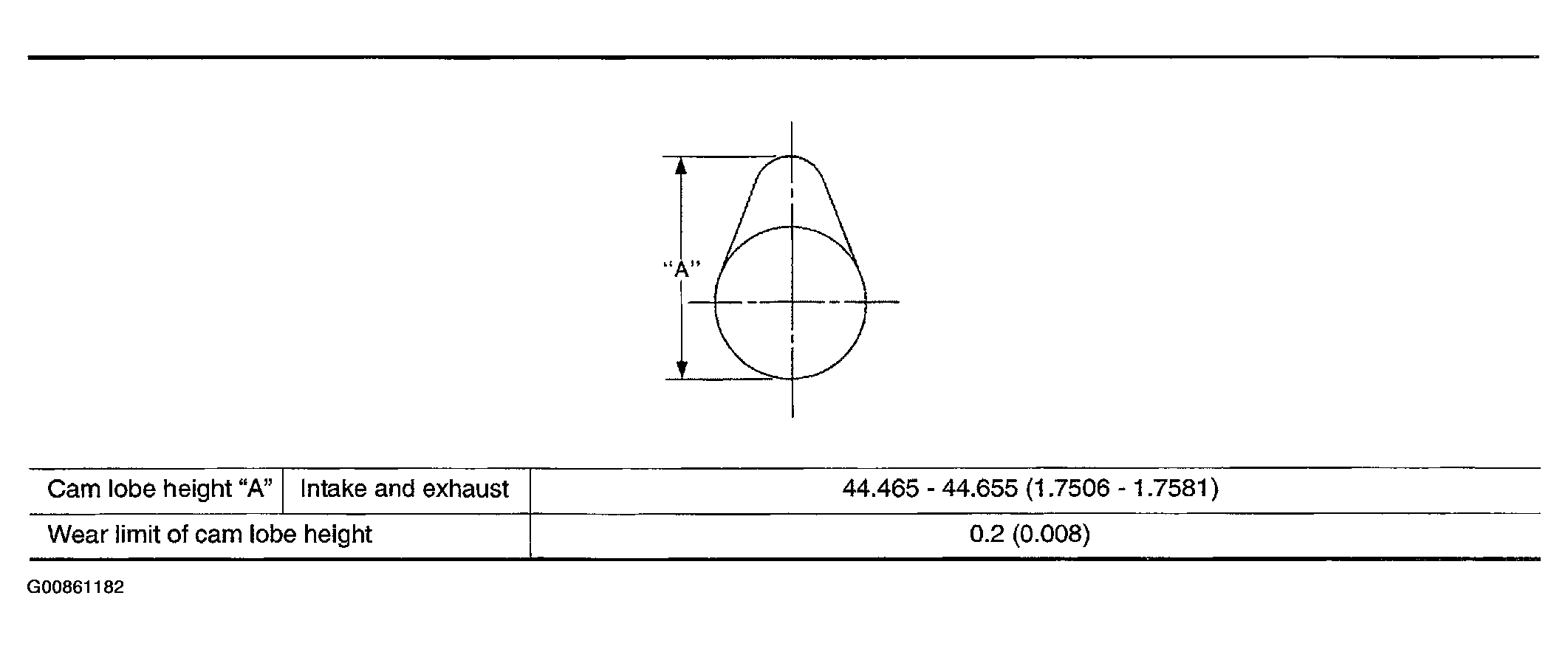

Fig 2: Camshaft & Camshaft Bearing (1 Of 2)
G00861182Courtesy of NISSAN MOTOR CO., U.S.A.
