Liquid Gasket Application Procedure
WARNING: This page is about a different variant/trim than selected.
- Using a scraper, remove the old Silicone RTV Sealant adhering to the gasket application surface and the mating surface.
- Remove the sealant completely from the groove of the gasket application surface, mounting bolts, and bolt holes.
- Thoroughly clean the gasket application surface and the mating surface and remove adhering moisture, grease and foreign materials.
- Attach the sealant tube to the tube presser.
Use Genuine RTV Silicone Sealant, or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

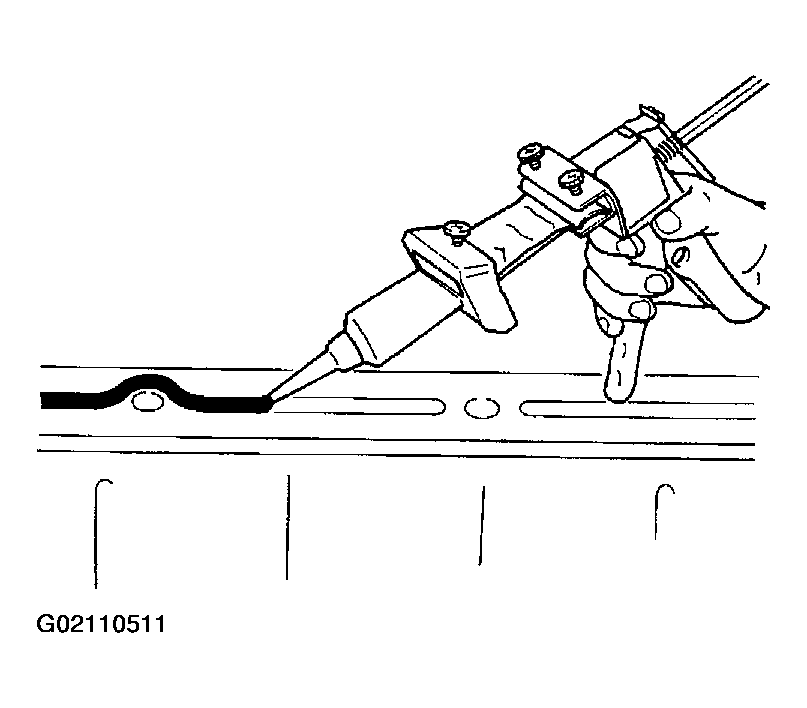

- Apply the sealant using Tool without breaks to the specified location.
- Tube presser WS 3993 0000 (-)
- If there is a groove for the sealant application, apply the sealant to the groove.
- As for the bolt holes, normally apply the sealant inside the holes. If specified, it should be applied outside the holes. Make sure to read the text in this manual.
- Within five minutes of sealant application, install the mating component.
- If the sealant protrudes, wipe it off immediately.
- Do not retighten after the installation.
- Wait 30 minutes or more after installation before filling the engine with oil and coolant.
CAUTION: Follow all specific instructions in this article .
