Removal and installation of Valve Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply new engine oil to new valve oil seal joint surface and seal lip.
  2. Press in valve oil seal to height "H"  with Tool to specified height.
    NOTE: Dimension "H": height measured before valve spring seat installation.
    1. Intake and exhaust : 14.3 - 14.9 mm (0.563 - 0.587 in)
  3. Installation of the remaining components is in the reverse order of removal.

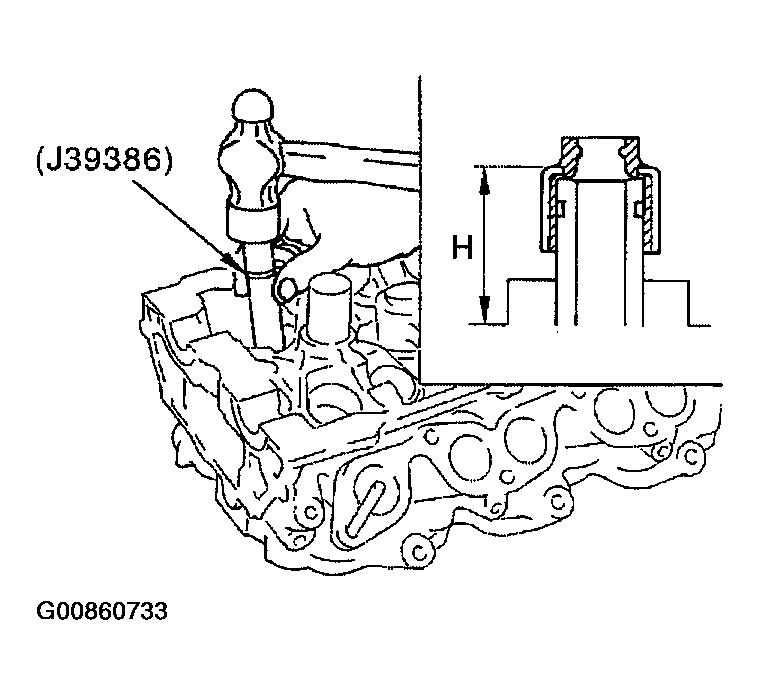

Fig 1: Installing Oil Seal
G00860733Courtesy of NISSAN MOTOR CO., U.S.A.
