Removal and Installation of Rear Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove oil liquid gasket on mating surface of cylinder block and oil pan using a scraper.
  2. Apply liquid gasket to rear oil seal retainer using tube presser as shown.
    • Use Genuine Silicone RTV Sealant or equivalent.
    • Assembly should be completed within 5 minutes after coating.

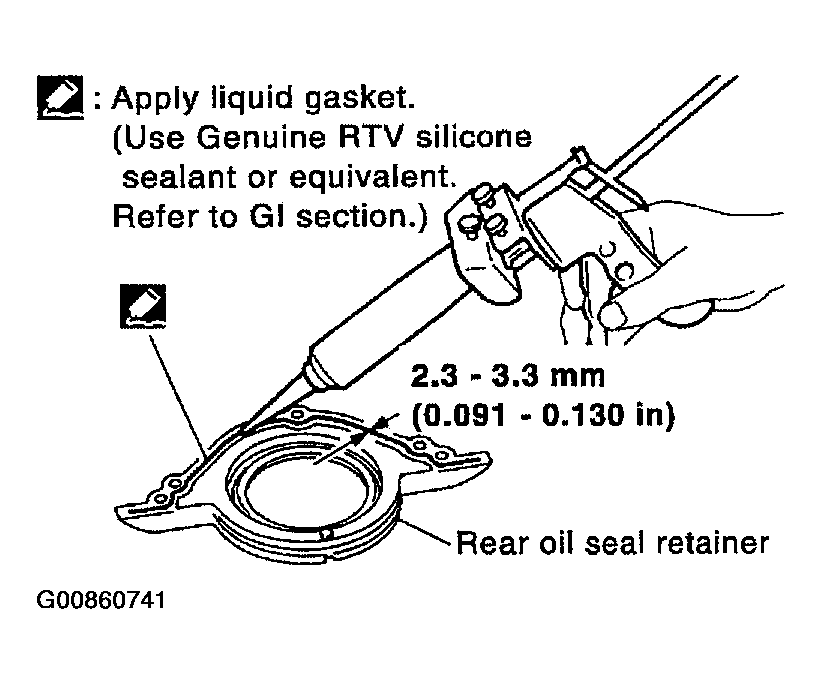

    Fig 1: Applying Sealant To Rear Oil Seal Retainer
    G00860741Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install rear oil seal retainer to cylinder block.
    1. Rear oil seal retainer mounting bolts : 8.2 - 9.3 N.m (0.83 - 0.95 kg-m, 72 - 82 in-lb)
  4. Installation of the remaining components is in reverse order of removal.
