Removal and Installation of Front Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply new engine oil to new oil seal and install it flush with front of mounting surface using a suitable tool.
    • Install new oil seal in the direction shown.
      1. Suitable drift
      2. Outer diameter : 59 mm (2.32 in)
      3. Inner diameter : 49 mm (1.93 in)
    CAUTION: Press fit straight and avoid causing burrs or tilting the oil seal.
  2. Installation of the remaining components is in reverse order of removal.

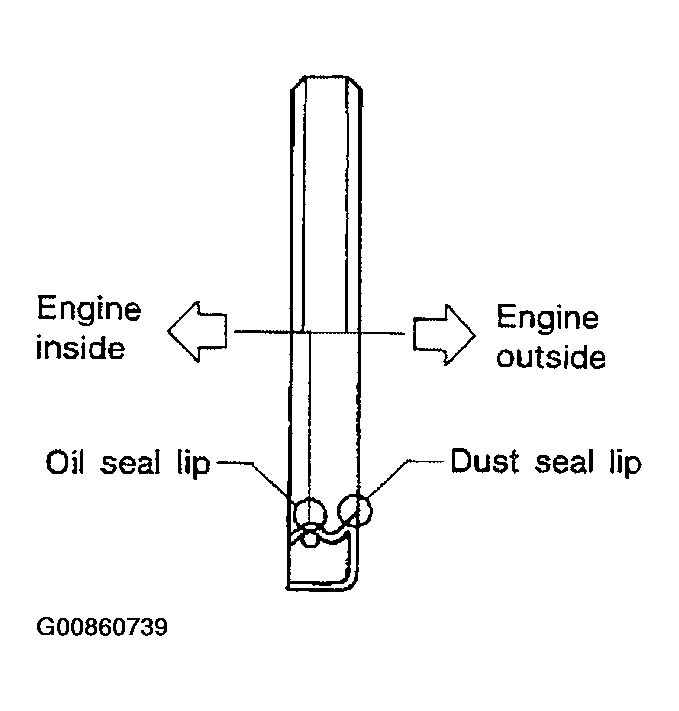

Fig 1: View Of Oil Seal
G00860739Courtesy of NISSAN MOTOR CO., U.S.A.
