Surface Distortion

WARNING: This page is about a different variant/trim than selected.

Using straightedge and feeler gauge, inspect the surface distortion of both the intake manifold and the intake manifold collector.
1. Standard : 0.1 mm (0.004 in)

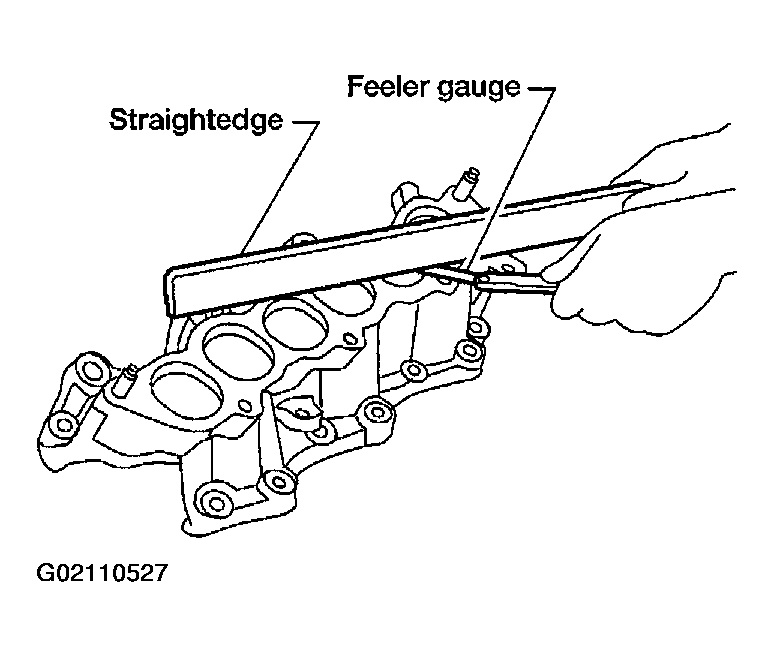

Fig 1: Checking For Warpage
Courtesy of NISSAN MOTOR CO., U.S.A.
