Removal and Installation: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
To avoid the danger of being scalded, never drain the coolant when the engine is hot.
- Remove the engine cover using power tool.
- Release the fuel pressure.
Refer to FUEL PRESSURE RELEASE .
- Remove air cleaner case lid and mass air flow sensor, and air intake tube as an assembly.
Refer to REMOVAL AND INSTALLATION .
- Partially drain the coolant when the engine is cool. Refer to V6 .
- Disconnect fuel tube quick connector at vehicle piping side.
Refer to step 5 of REMOVAL.
- Disconnect the power brake booster vacuum hose, the coolant hoses from the electric throttle control actuator, the swirl control vacuum lines, the fuel injectors electrical connectors, and the PCV hose.CAUTION:
- Cover any engine openings to avoid the entry of any foreign material.
- Disconnect the electric throttle control actuator electrical connector and coolant hoses.
- Remove the cowl top grille and the windshield wiper assembly.
Refer to REMOVAL AND INSTALLATION .
- Disconnect the power steering hose bracket.
- Remove the vacuum tank from the back of the intake manifold collector.
- Remove the intake manifold collector pipe and electric throttle control actuator, by loosening the four bolts in a diagonal pattern.CAUTION: Handle carefully to avoid any shock to the electric throttle control actuator.

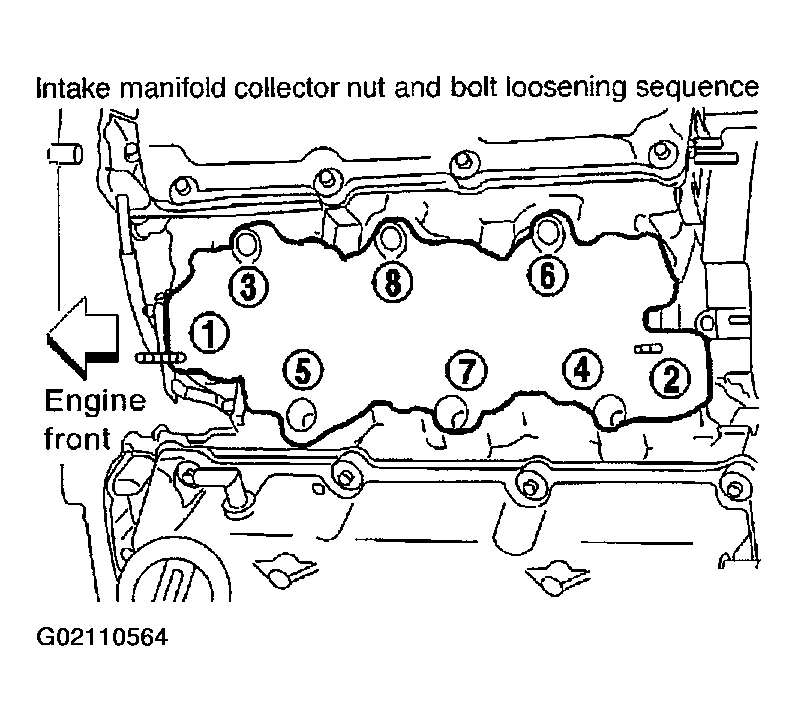

- Loosen the bolts in the order shown, and remove the intake manifold collector using power tool.
- Remove the fuel rail with the fuel injectors attached, from the intake manifold. Remove the fuel injector O-rings and use new O-rings for installation.
