Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

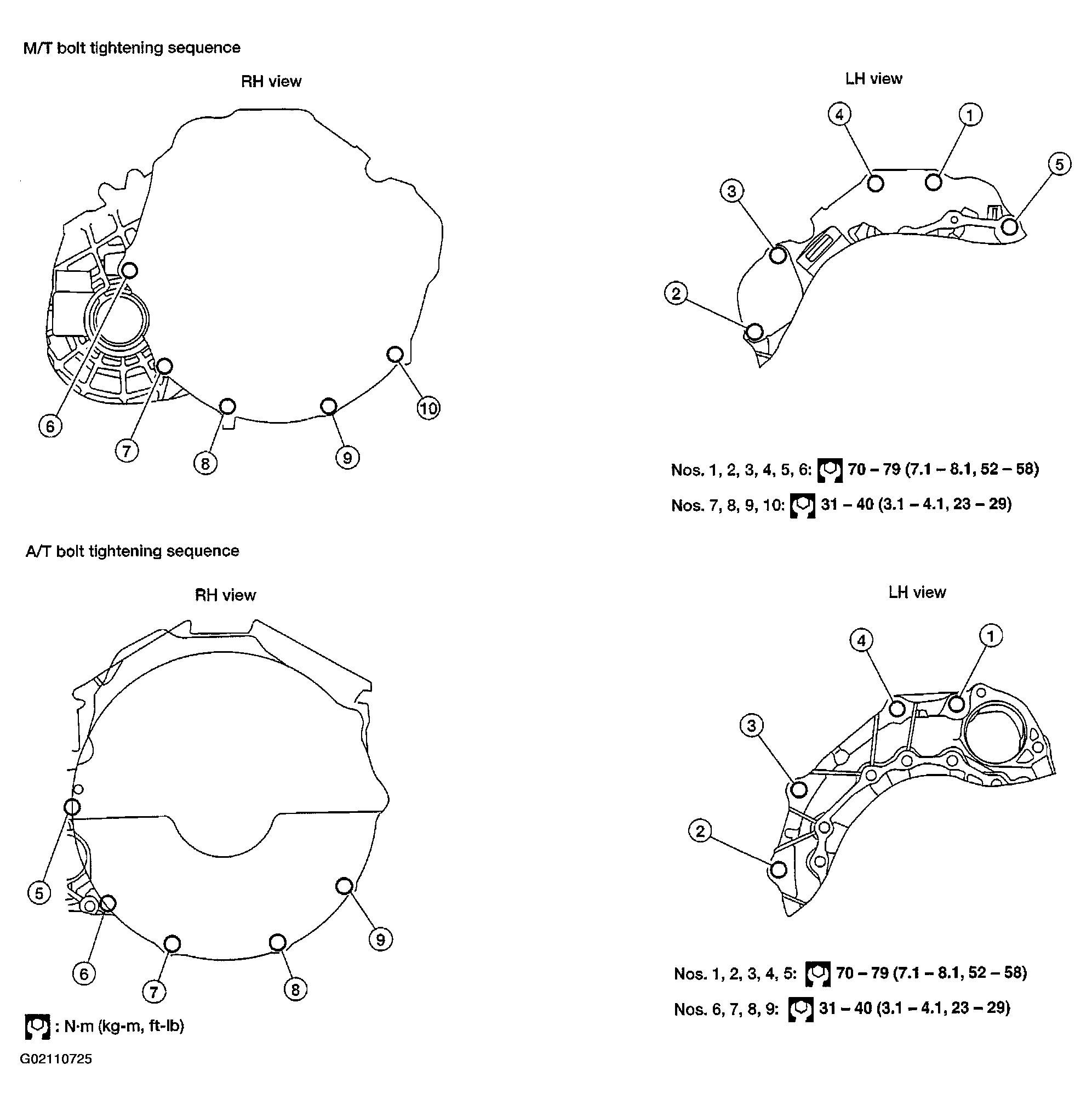

Fig 1: View Of Engine To Transmission Bellhousing Torque Sequence & Specifications
G02110725Courtesy of NISSAN MOTOR CO., U.S.A.
