Checking Drive Belts: Notes
WARNING: This page is about a different variant/trim than selected.
- Inspect belt for cracks, fraying, wear or oil adhesion. If necessary, replace with a new one.

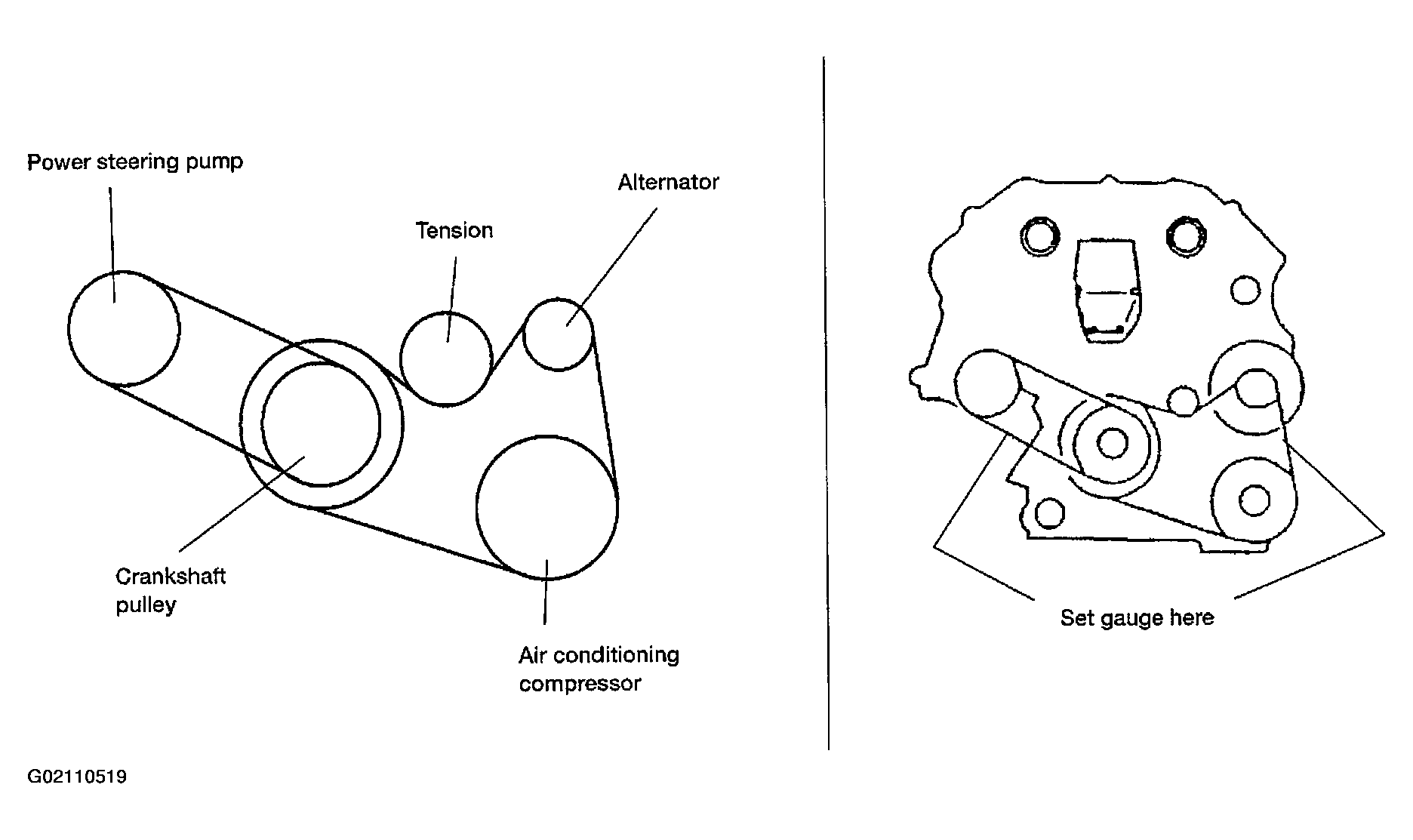

- Inspect drive belt deflections by pushing on the belt midway between pulleys as shown.
- Rotate the crankshaft pulley two times then check the belt tension using the Tool.NOTE: Inspect drive belt deflection or tension when engine is cold.
Adjust if belt deflections exceed the limit or if belt tension is not within specifications.
