Section 3 (Engine Mechanical - 3.5L)
>>
Drive Belts
>>
Checking Drive Belts
>>
Belt Deflection and Tension
Belt Deflection and Tension
WARNING:
This page is about a different variant/trim than selected.

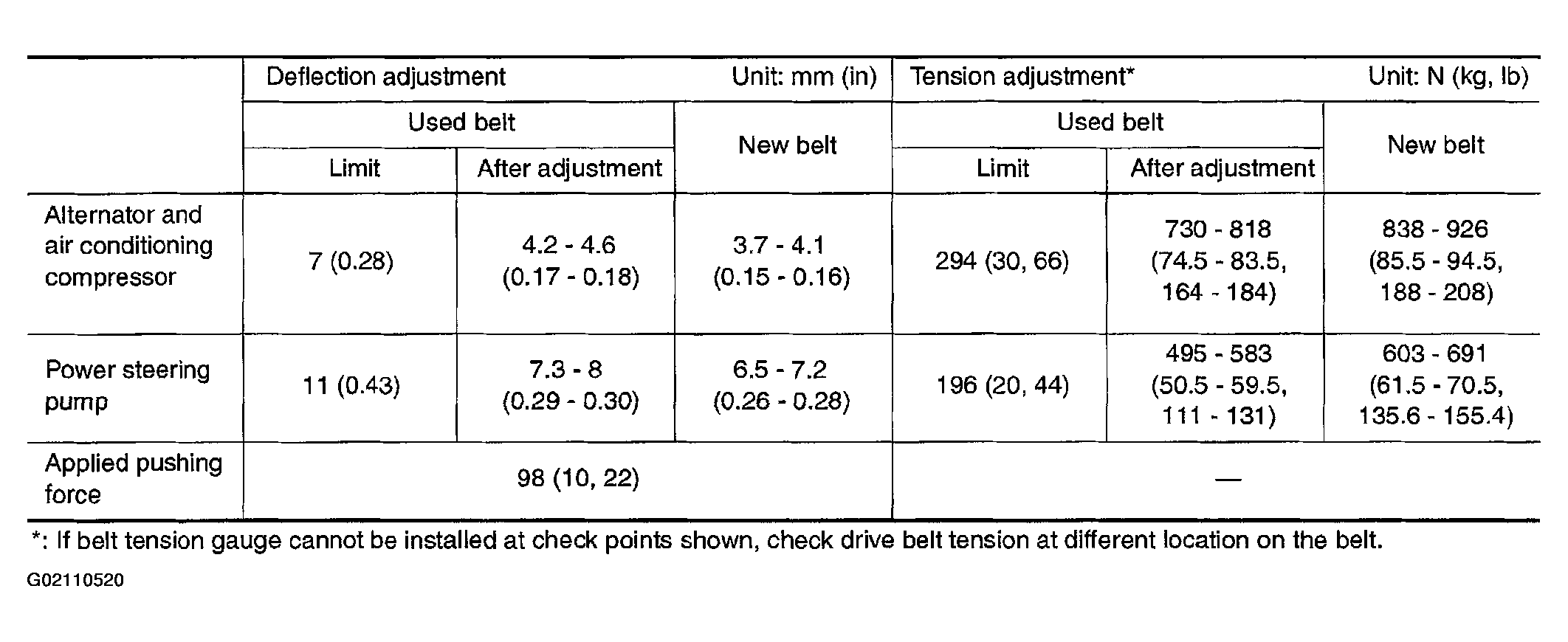

Fig 1: Belt Deflection & Tension
Courtesy of NISSAN MOTOR CO., U.S.A.
