Valve Spring Squareness

Set try square along the side of valve spring and rotate the spring. Measure the maximum clearance between the top face of spring and try square.

1. Out-of-square limit : Less than 2.0 mm (0.079 in)

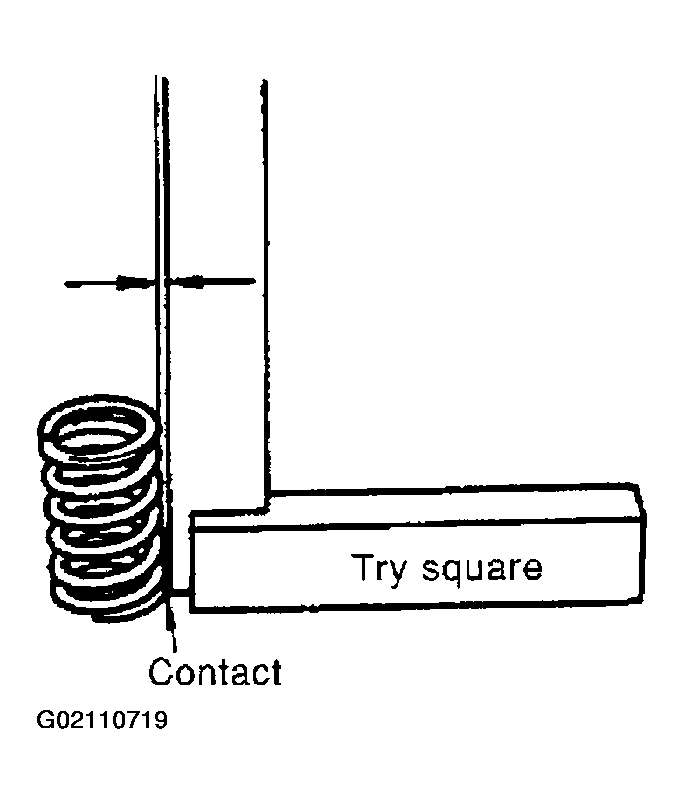

Fig 1: Checking Out-Of-Square Limit

Courtesy of NISSAN MOTOR CO., U.S.A.
