Disassembly and Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

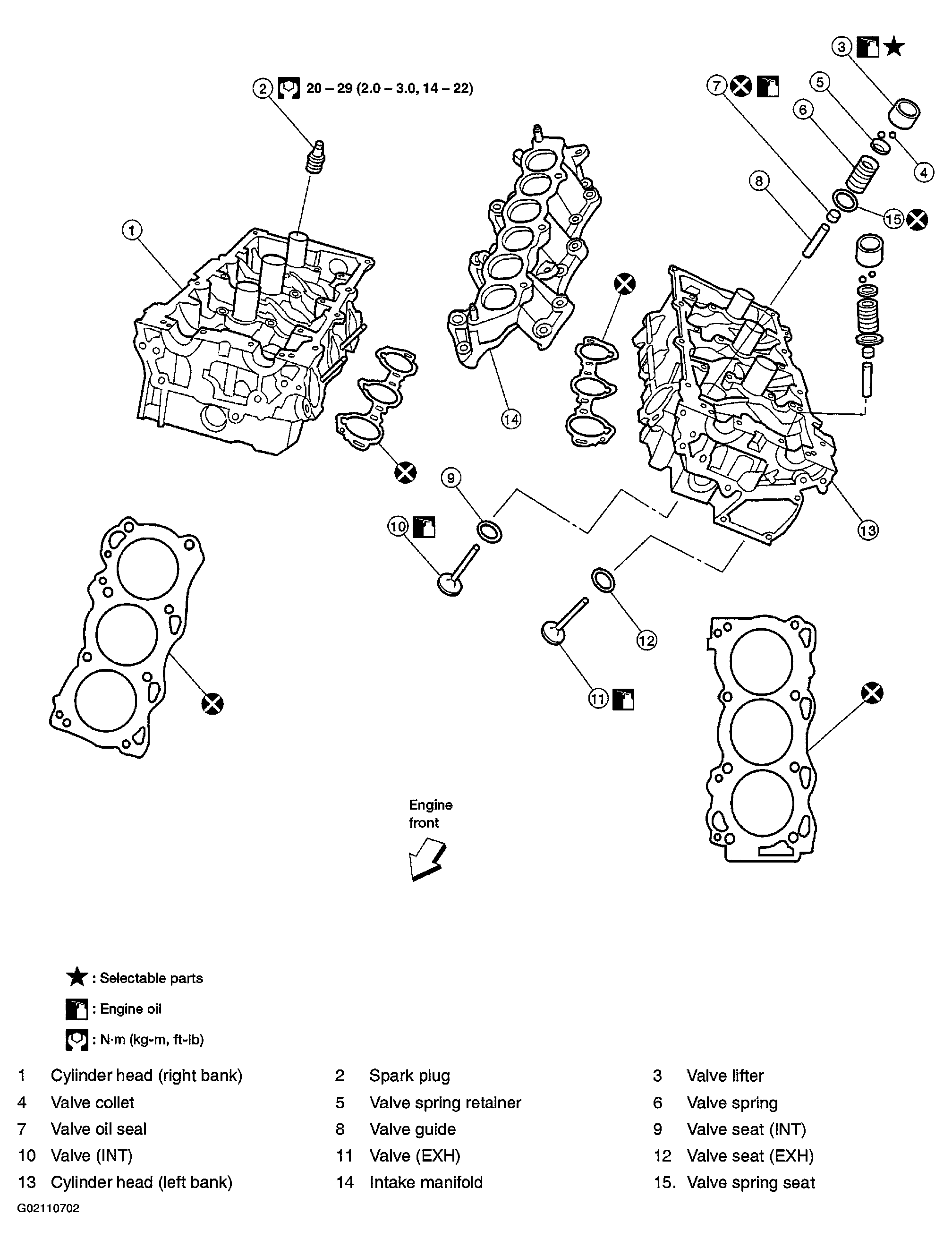

Fig 1: Cylinder Head Replacement Components With Torque Specifications
G02110702Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil.
  • Apply new engine oil to threads and seat surface when installing cylinder head, camshaft sprocket, crankshaft pulley, and camshaft bracket.
  • Attach tags to valve lifters so as not to mix them up.
