Outer Diameter of Piston Pin
WARNING: This page is about a different variant/trim than selected.

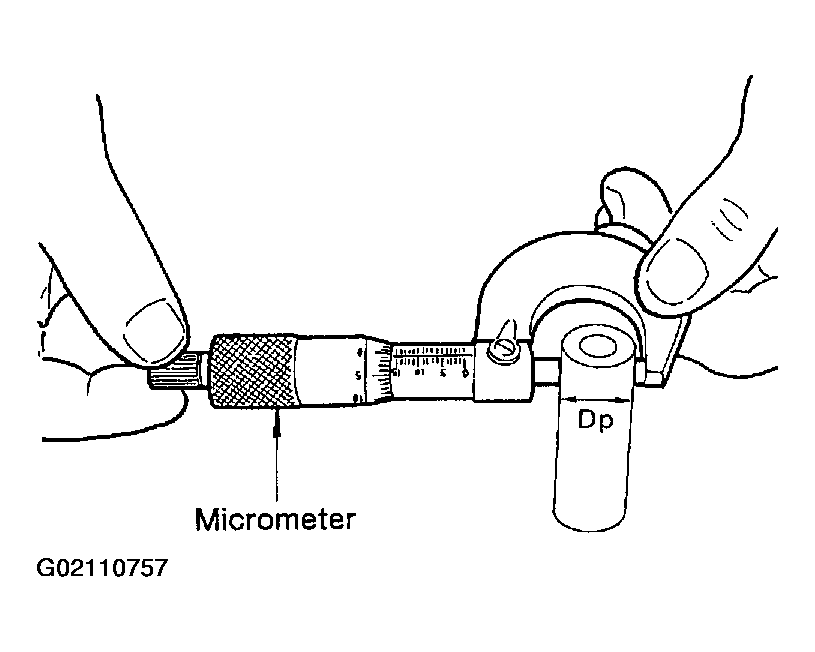

- Measure outer diameter of piston pin "Dp".
- Standard diameter "Dp"
- Grade No. 0 : 21.989-21.995 mm (0.8657-0.8659 in)
- Grade No. 1 : 21.995-22.001 mm (0.8659-0.8662 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
