Inner Diameter of Piston Pin

WARNING: This page is about a different variant/trim than selected.

Measure the inner diameter of piston pin bore "dp".
1. Standard diameter "dp"
2. Grade No. 0 : 21.993-22.999 mm (0.8659-0.8661 in)
3. Grade No. 1 : 21.999-22.005 mm (0.8661-0.8663 in)

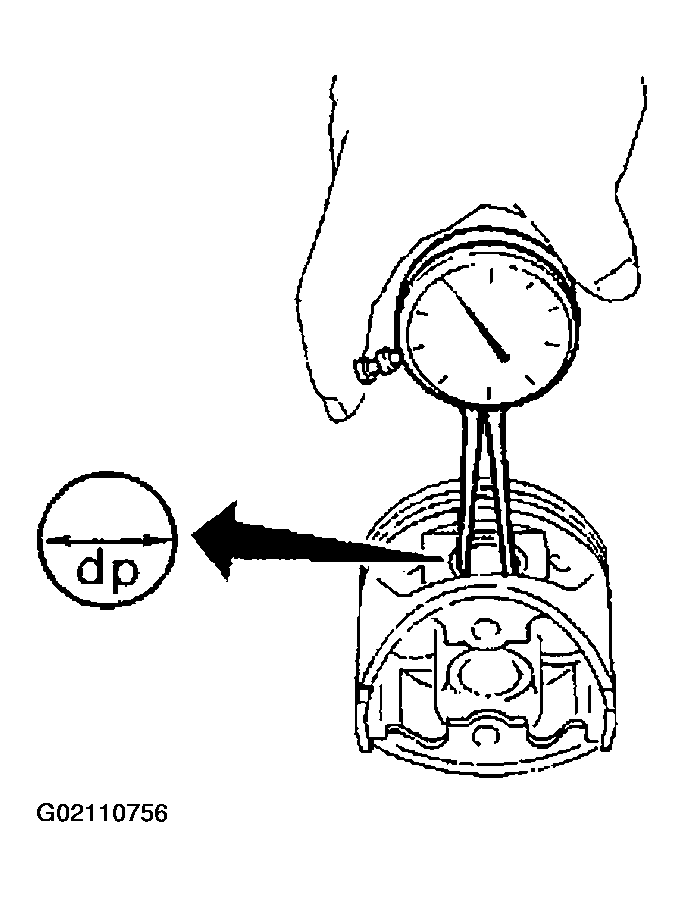

Fig 1: Checking Inner Diameter of Piston Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
