Drive Plate RUNOUT (A/T)

WARNING: This page is about a different variant/trim than selected.

Runout (Total Indicator Reading):

  1. Drive plate (A/T) : less than 0.15 mm (0.0059 in)

CAUTION:
  • The signal plate is built into the drive assembly. Be careful not to damage the signal plate, particularly the teeth.
  • Check the drive plate and signal plate for deformation or cracks.
  • Keep any magnetized objects away from the signal plate, particularly the teeth.

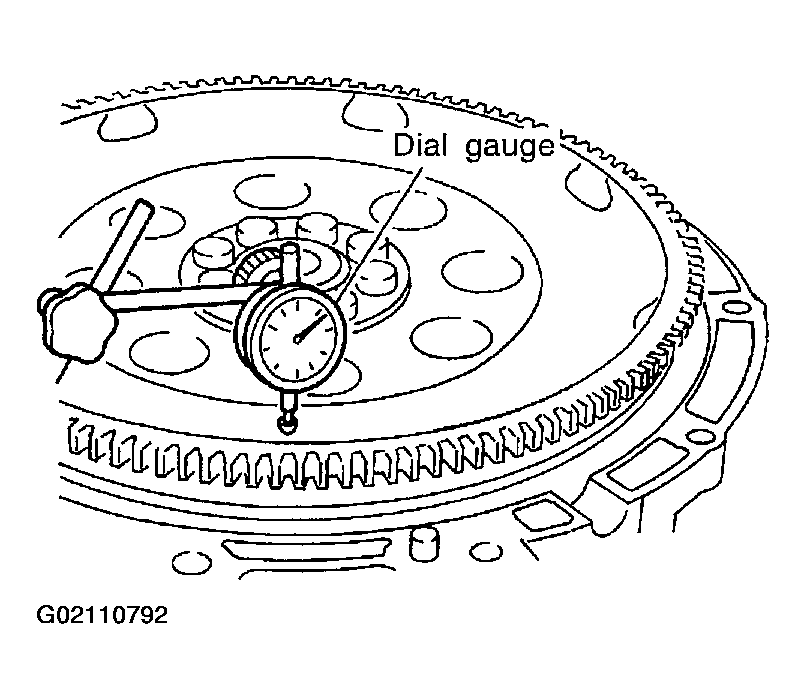

    Fig 1: Checking Drive Plate Runout (1 Of 2)
    G02110792Courtesy of NISSAN MOTOR CO., U.S.A.

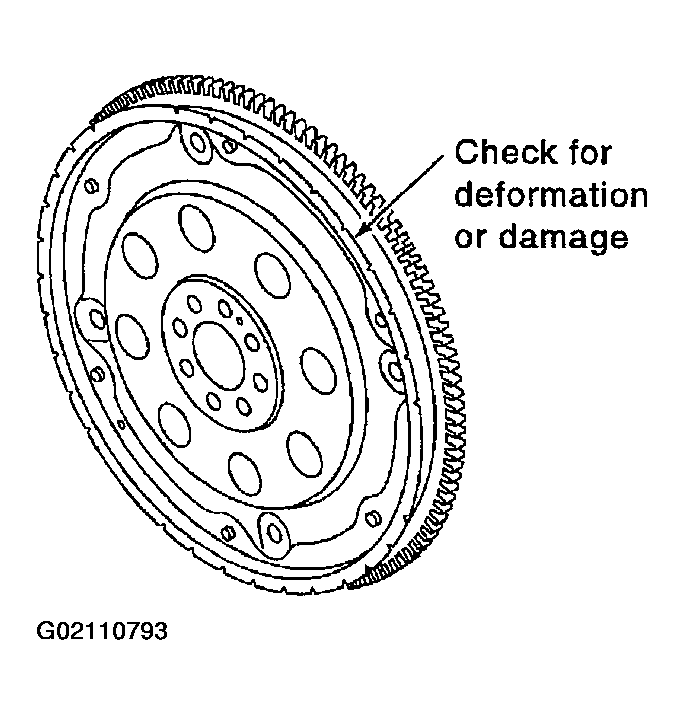

    Fig 2: Checking Drive Plate Runout (2 Of 2)
    G02110793Courtesy of NISSAN MOTOR CO., U.S.A.
