Outer Diameter of Piston Pin

WARNING: This page is about a different variant/trim than selected.

Measure outer diameter of piston pin.
1. Standard Grade No. 0
  1. : 21.989-21.995 mm (0.8657-0.8659 in)
  2. Grade No. 1
  3. : 21.995-22.001 mm (0.8659-0.8662 in)

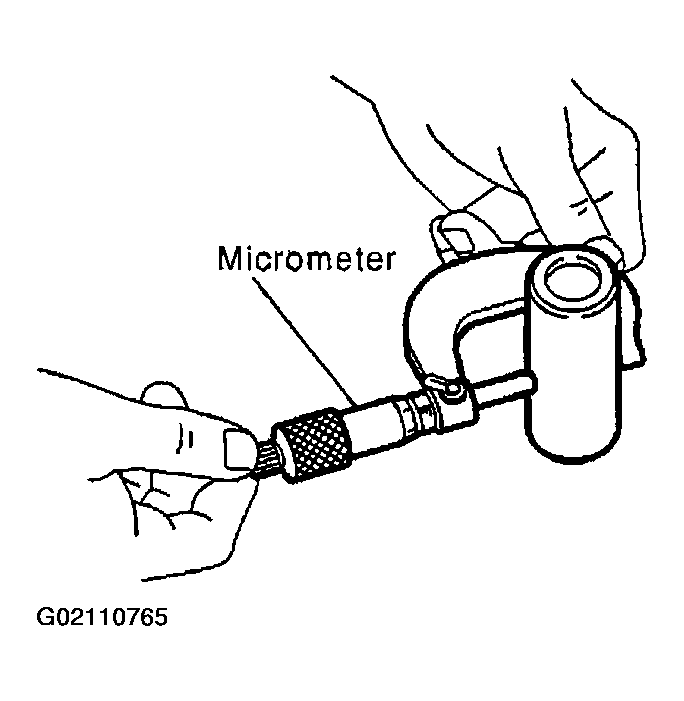

Fig 1: Checking Outer Diameter of Piston Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
