Inner Diameter of Connecting Rod (Small End)

WARNING: This page is about a different variant/trim than selected.

Measure inner diameter of bushing.
1. Standard Grade No. 0
  1. : 22.000-22.006 mm (0.8661-0.8664 in) Grade No. 1
  2. : 22.006-00.012 mm (0.8664-0.8666 in)

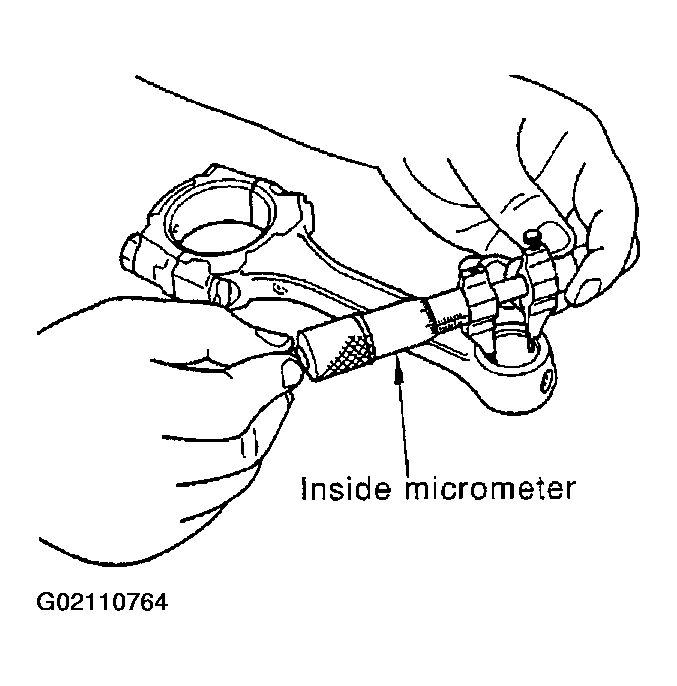

Fig 1: Checking Inner Diameter of Connecting Rod (Small End)
Courtesy of NISSAN MOTOR CO., U.S.A.
