Connecting Rod Bend And Torsion

WARNING: This page is about a different variant/trim than selected.

Bend : Limit 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
Torsion : Limit 0.30 mm (0.0118 in) per 100 mm (3.94 in) length

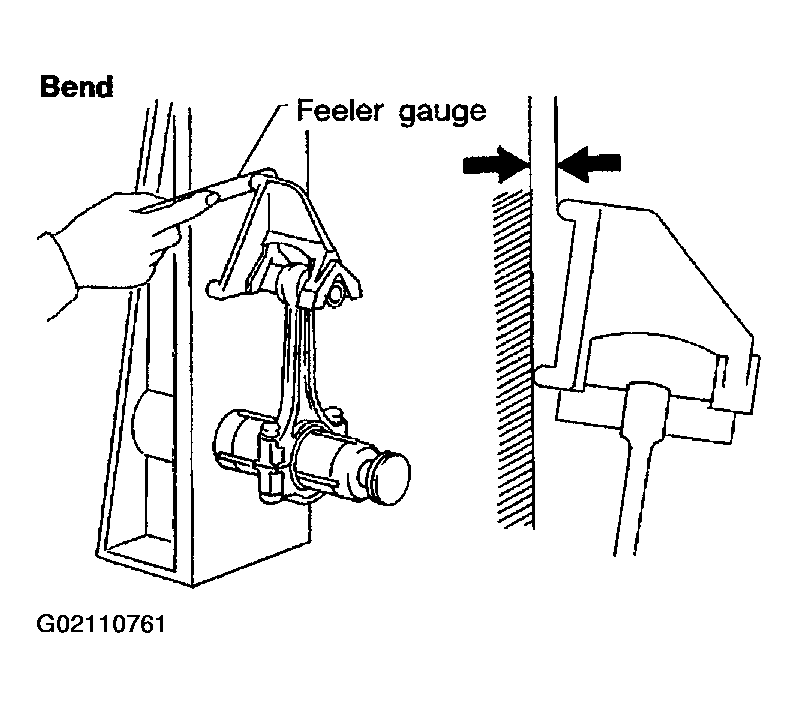

Fig 1: Checking Connecting Rod Bend
Courtesy of NISSAN MOTOR CO., U.S.A.

If it exceeds the limit, replace connecting rod assembly.

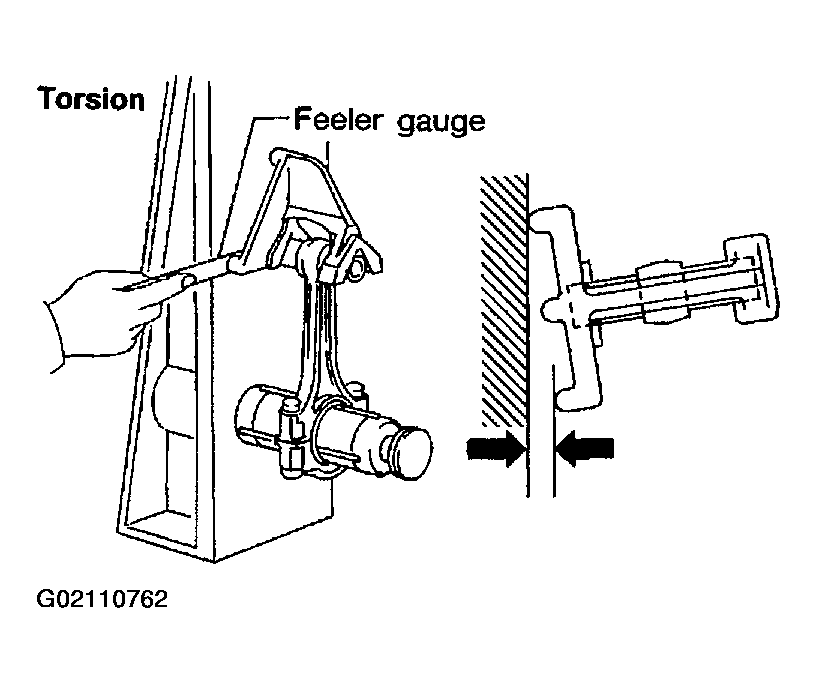

Fig 2: Checking Connecting Rod Torsion
Courtesy of NISSAN MOTOR CO., U.S.A.
