Connecting Rod Bearing (Big End)

WARNING: This page is about a different variant/trim than selected.

Install the connecting rod cap without the connecting rod bearing installed. After tightening the connecting rod nut to the specified torque, measure the connecting rod large end inner diameter using an inside micrometer.
1. Standard : 55.000-55.013 mm (2.1654-2.1659 in)

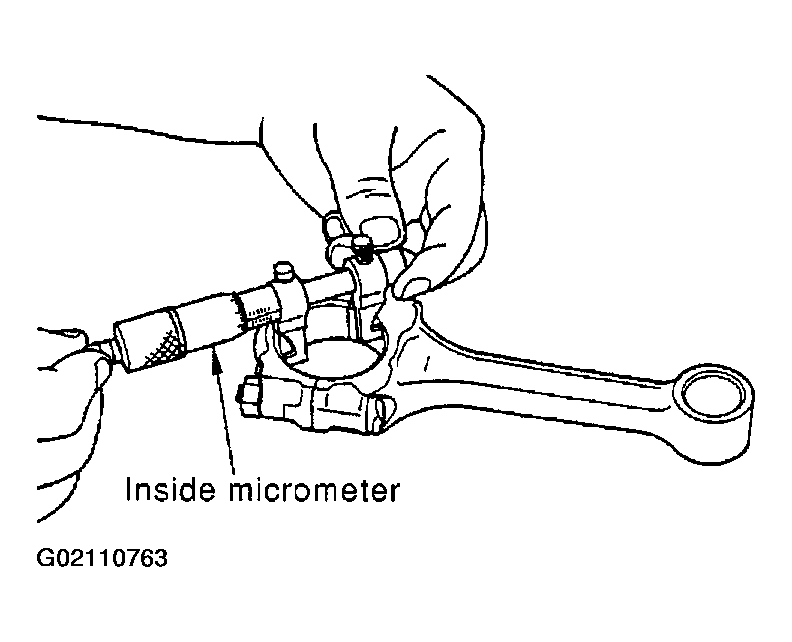

Fig 1: Connecting Rod Bearing (Big End)
Courtesy of NISSAN MOTOR CO., U.S.A.
