Disassembly and Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE: Flywheel removal may require use of special tool J-46531 (TP55 Torx Plus driver) for M/T flywheel bolts. See ESSENTIAL TOOL: TORX DRIVER FOR FLYWHEEL BOLTS for more information.

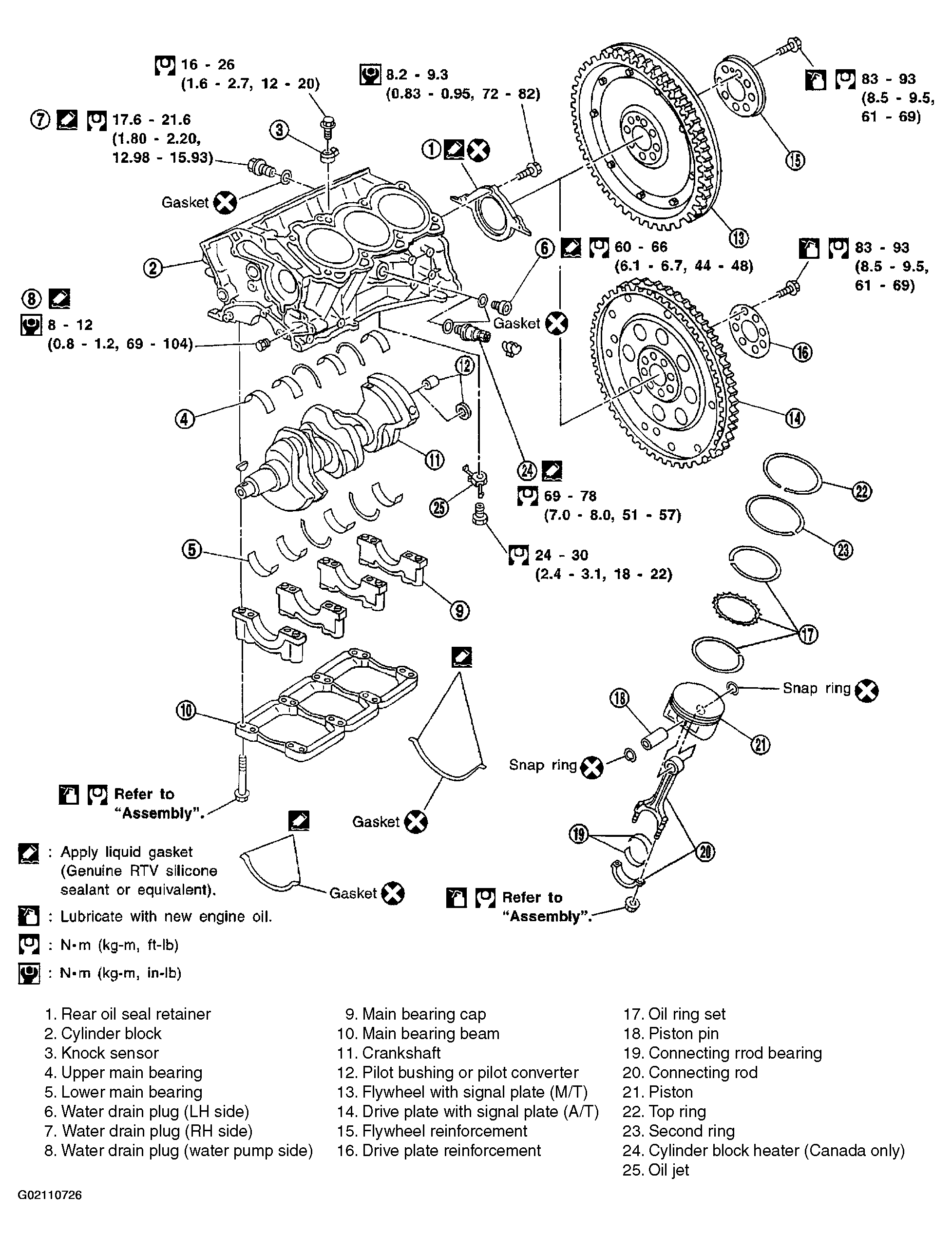

Fig 1: View Of Cylinder Block & Torque Specifications
G02110726Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Apply new engine oil to parts as marked in illustrations before installation.
  • Place removed parts such as bearings and bearing caps in their proper order and direction.
  • When installing the connecting rod nuts, and main bearing cap bolts, apply new engine oil to the threads and mating surfaces
  • Do not allow any magnetic materials to contact the signal plate teeth on the drive plate.
