Camshaft Sprocket Runout

WARNING: This page is about a different variant/trim than selected.
  1. Put V-block on precise flat bed and support No. 2 and No. 4 journal of camshaft as shown.
  2. Install camshaft sprocket on camshaft.
  3. Measure camshaft sprocket runout.
    1. Runout : Less than 0.15 mm (0.0059 in)
    2. If sprocket runout exceeds the limit, replace camshaft sprocket.

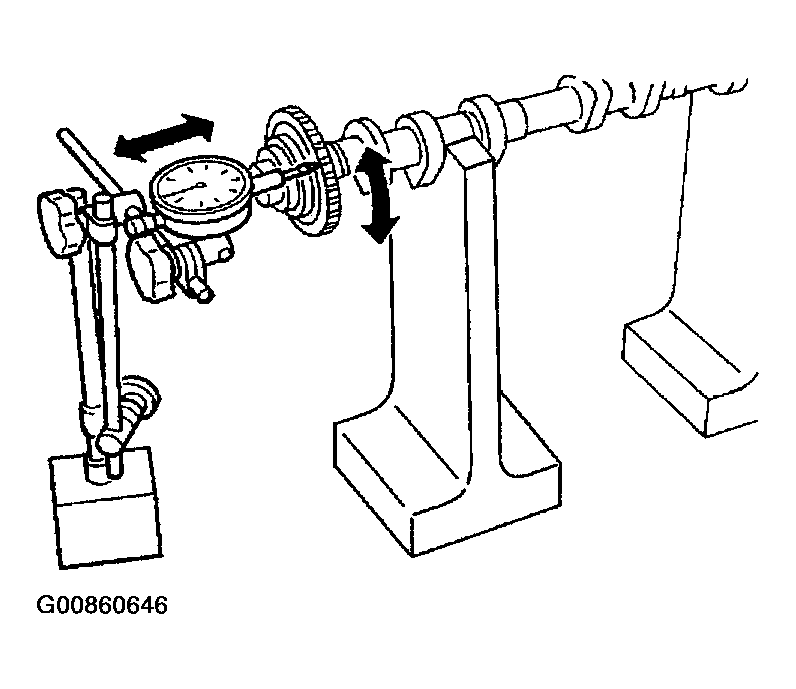

    Fig 1: Checking Camshaft Sprocket Runout
    G00860646Courtesy of NISSAN MOTOR CO., U.S.A.
