Outer Diameter of Camshaft Journal

WARNING: This page is about a different variant/trim than selected.

Measure outer diameter of camshaft journal as shown.
1. Standard outer : 25.935 - 25.955 mm
2. diameter, No. 1 (1.0211 - 1.0218 in)
3. Standard outer : 23.445 - 23.465 mm
4. diameter, No. 2, 3, 4 (0.9230 - 0.9238 in)

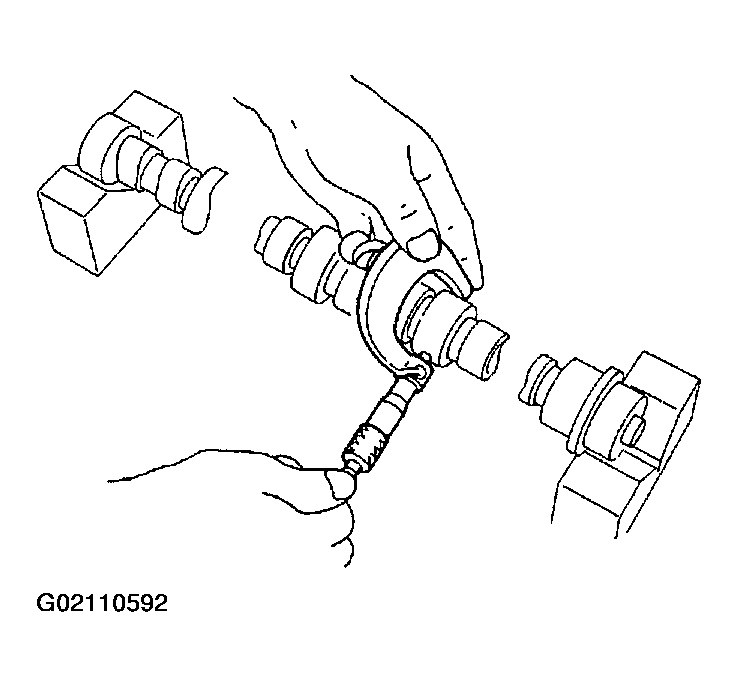

Fig 1: Checking Outer Diameter of Camshaft Journal

Courtesy of NISSAN MOTOR CO., U.S.A.
