Inner Diameter of Camshaft Bracket

WARNING: This page is about a different variant/trim than selected.

Tighten camshaft bracket bolt with specified torque.
Using inside micrometer, measure inner diameter "A" of camshaft bearing.
1. Standard inner diameter : 26.000 - 26.021 mm
2. No. 1 (1.0236 - 1.0244 in)
3. Standard inner diameter : 23.500 - 23.521 mm
4. No. 2, 3, 4 (0.9252 - 0.9260 in)

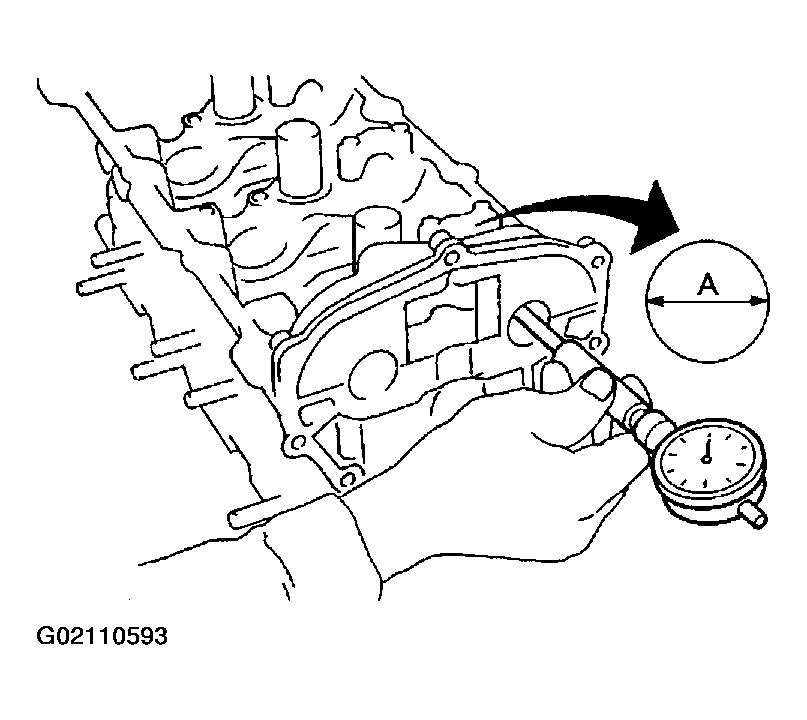

Fig 1: Checking Inner Diameter of Camshaft Bracket

Courtesy of NISSAN MOTOR CO., U.S.A.
