Camshaft End Play

WARNING: This page is about a different variant/trim than selected.
  1. Install the camshaft in the cylinder head.
  2. Install dial gauge in thrust direction on front end of camshaft. Measure end play when camshaft is moved forward/backward (in direction to axis) as shown.

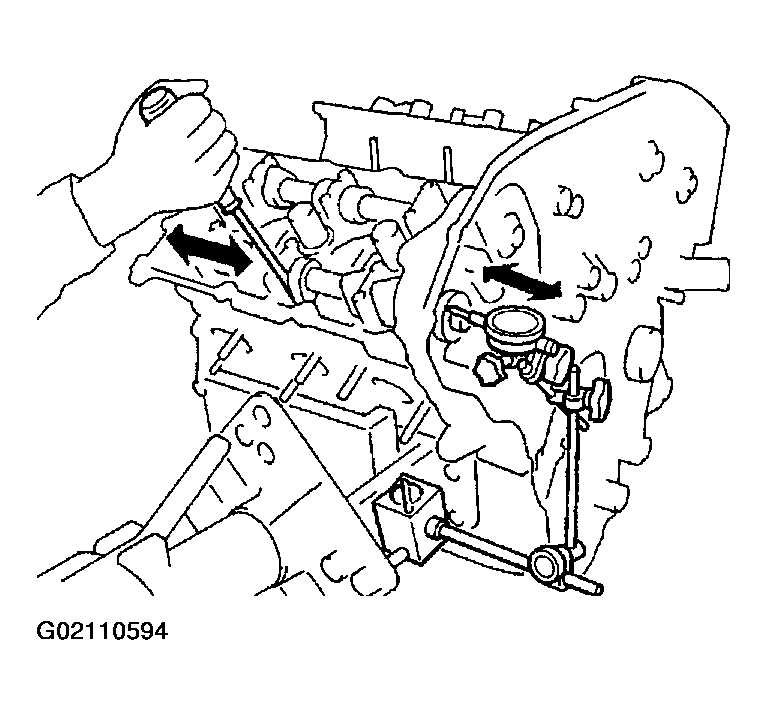

    Fig 1: Checking Camshaft End Play
    G02110594Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Standard : 0.115 - 0.188 mm (0.0045 - 0.0074 in)
    2. Limit : 0.24 mm (0.0094 in)
    • If out of the specified range, replace with new camshaft and measure again.
    • If out of the specified range again, replace with new cylinder head.
