Camshaft Cam Lobe Height

WARNING: This page is about a different variant/trim than selected.

Measure camshaft cam lobe height as shown.
1. Standard cam lobe height - intake and exhaust : 44.865 - 44.055 mm (1.7763 - 1.7738 in)
2. Cam lobe wear limit : 0.2 mm (0.008 in)
If wear has reduced the lobe height below specifications, replace the camshaft.

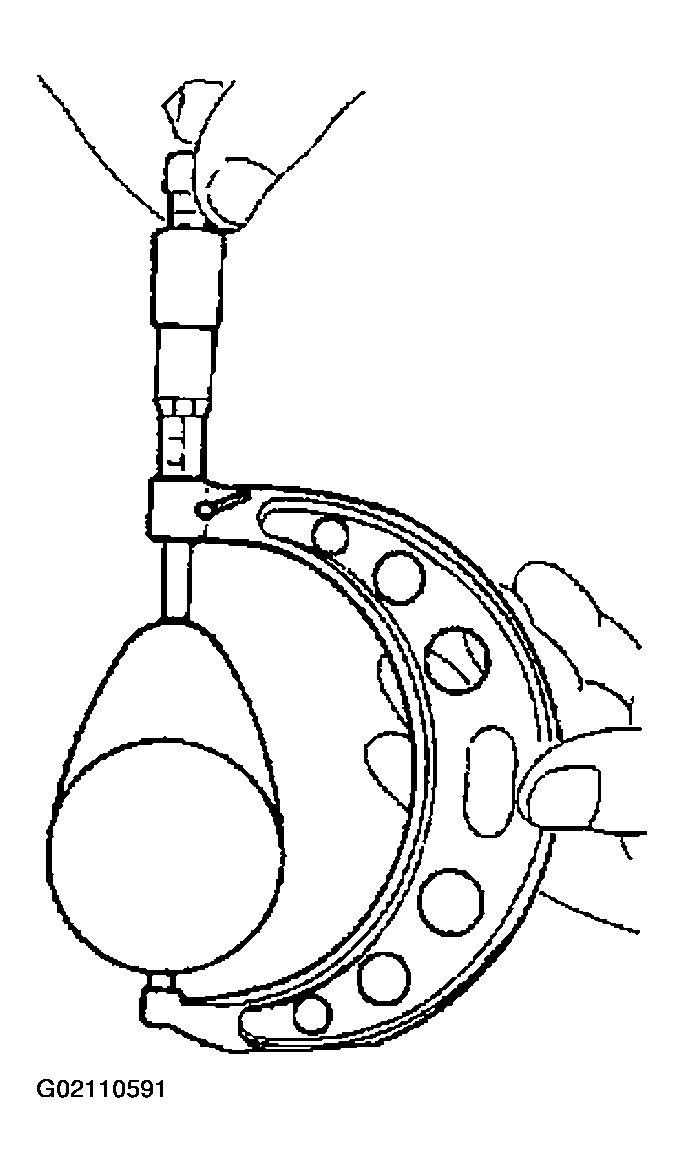

Fig 1: Camshaft Cam Lobe Height
Courtesy of NISSAN MOTOR CO., U.S.A.
