Wiring Diagram - Air Conditioner Control - With Monochrome Display

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

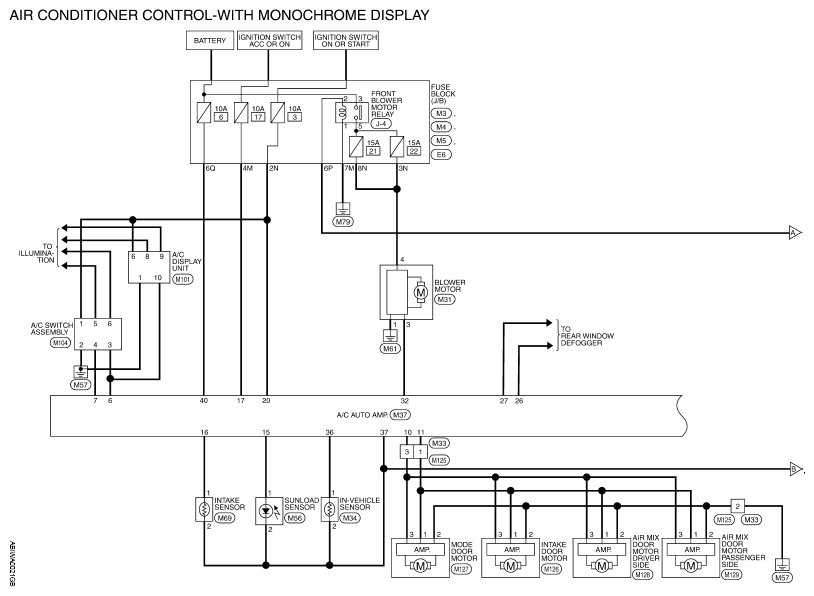

Fig 1: Air Conditioner Control (With Monochrome Display) - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

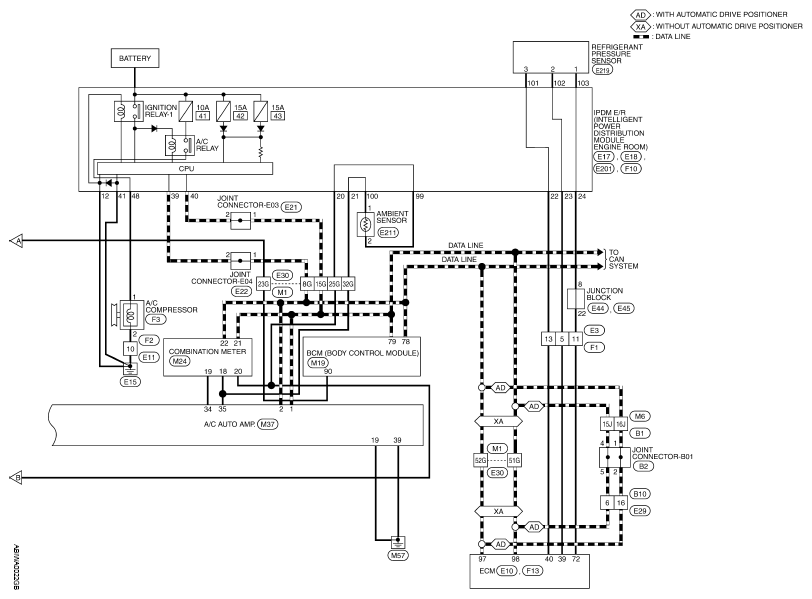

Fig 2: Air Conditioner Control (With Monochrome Display) - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

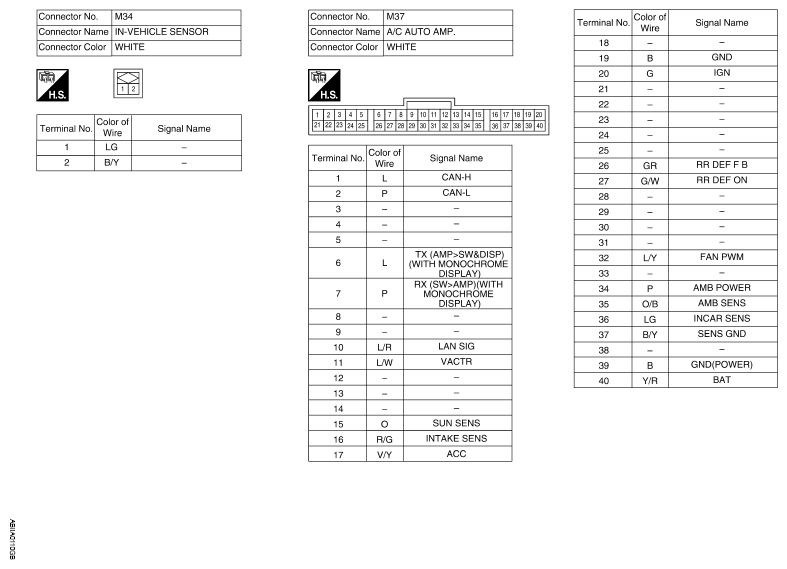

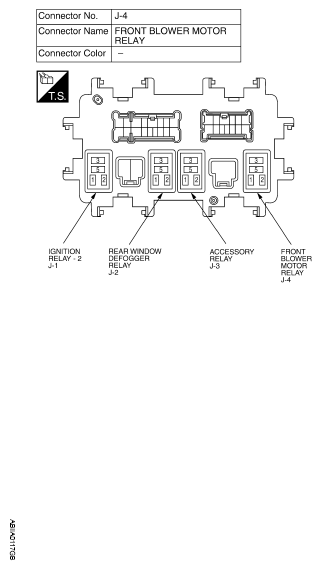

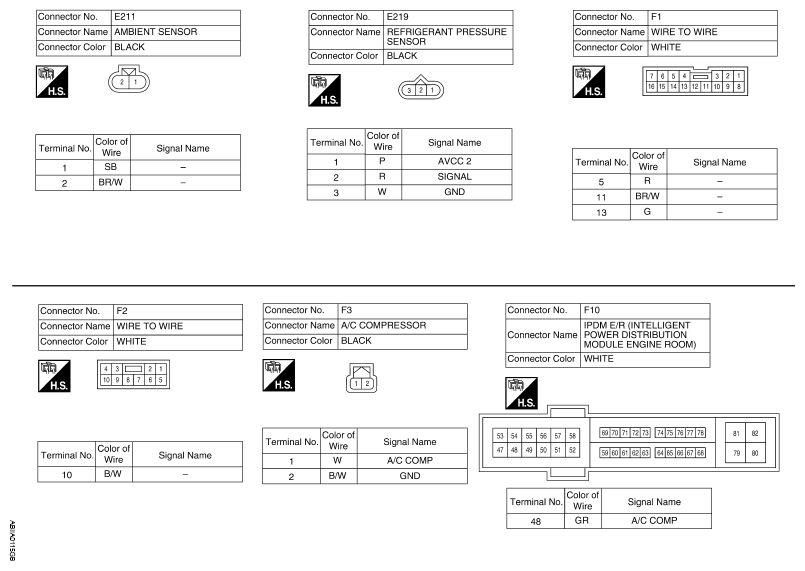

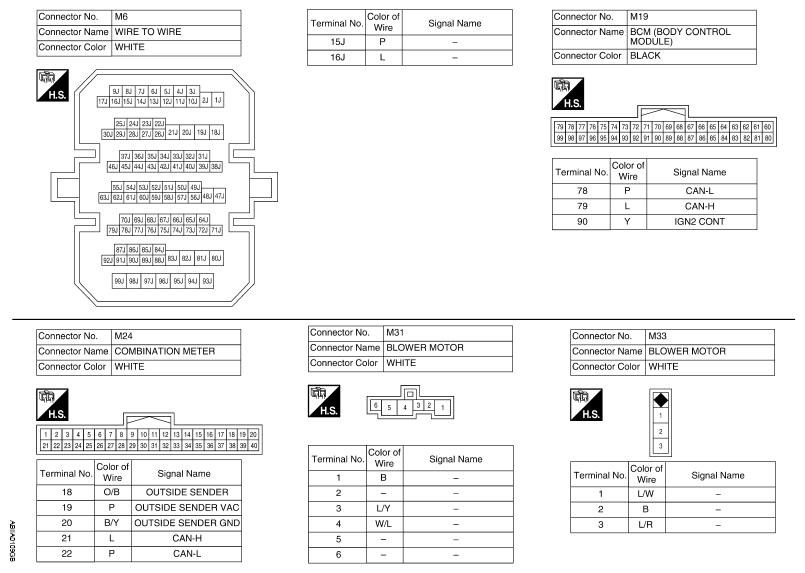

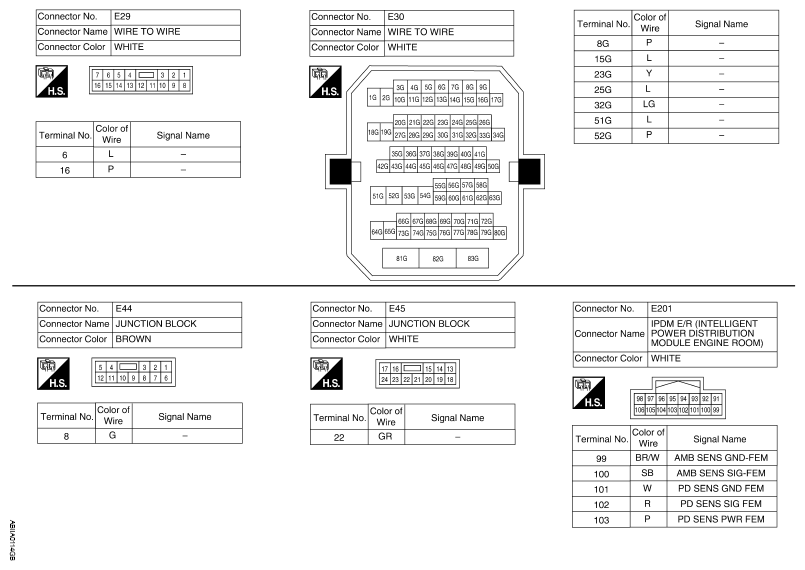

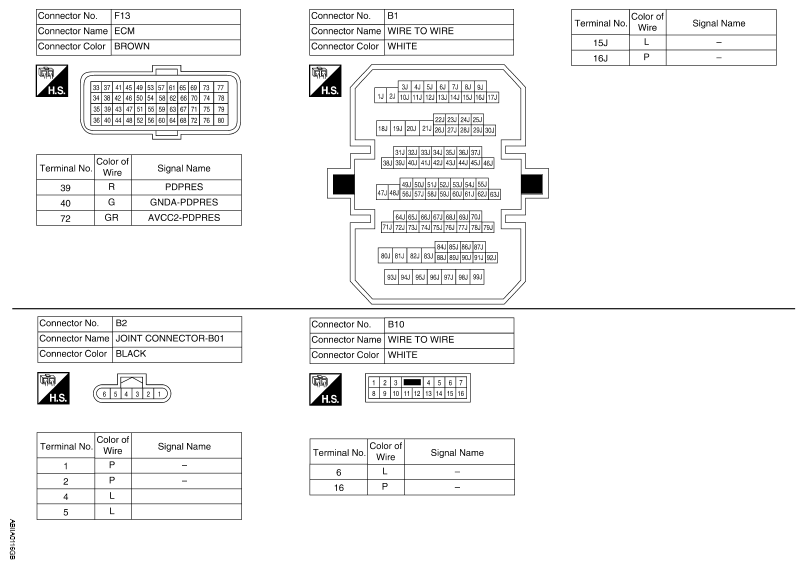

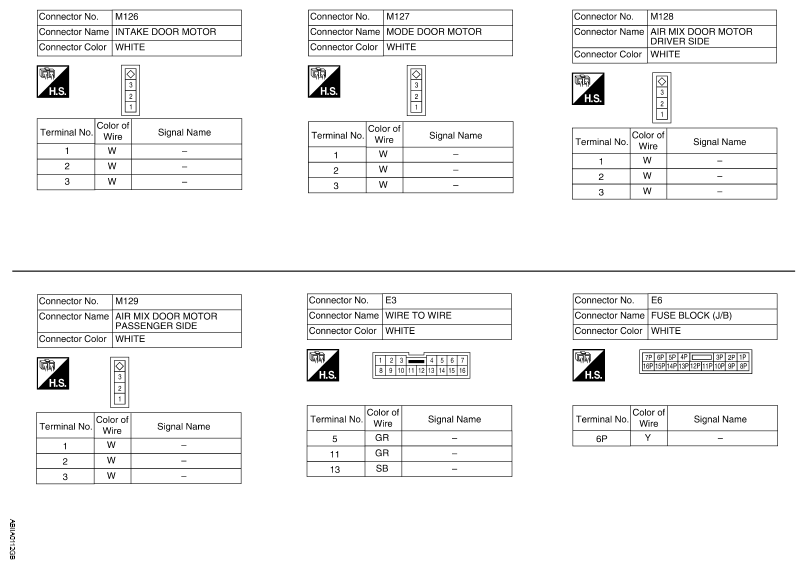

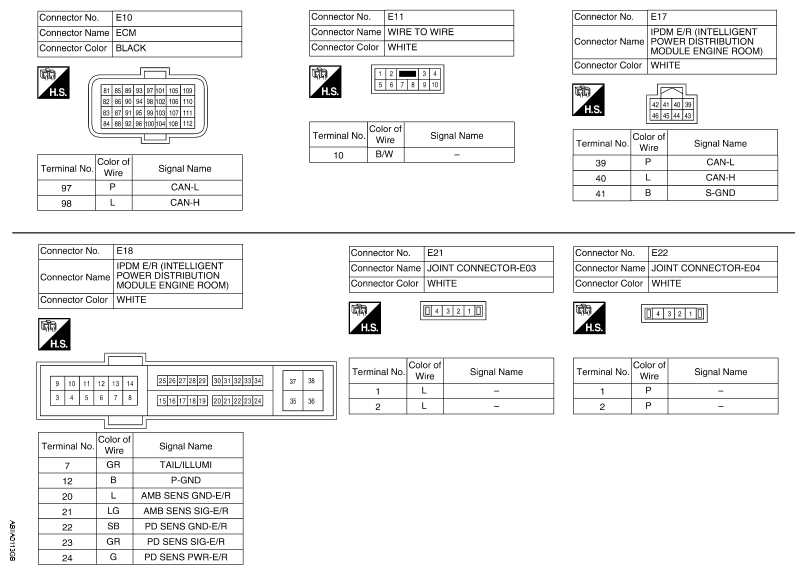

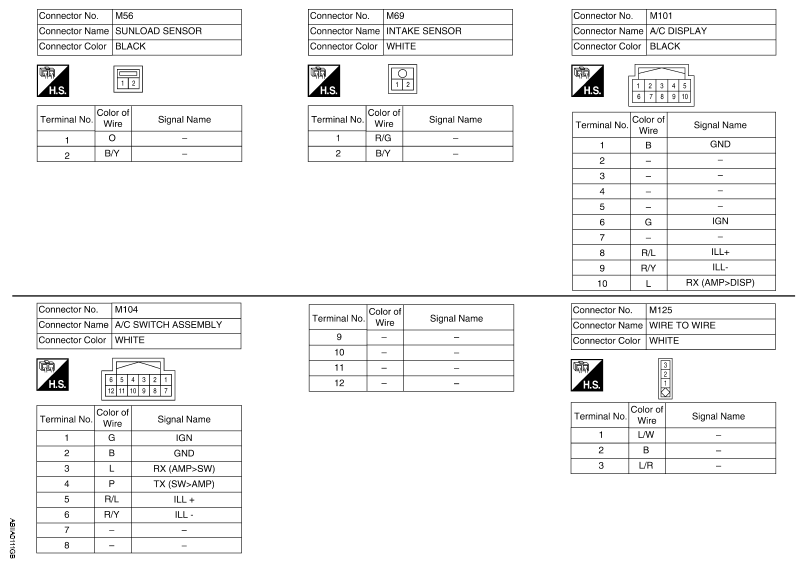

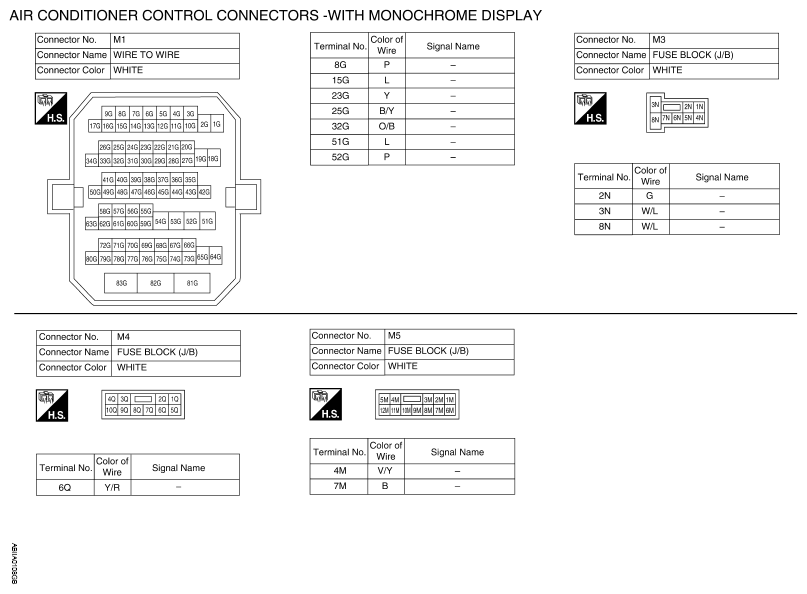

Fig 3: Air Conditioner Control Connectors Chart (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Air Conditioner Control Connectors Chart (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Air Conditioner Control Connectors Chart (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Air Conditioner Control Connectors Chart (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Air Conditioner Control Connectors Chart (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Air Conditioner Control Connectors Chart (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Air Conditioner Control Connectors Chart (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Air Conditioner Control Connectors Chart (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Air Conditioner Control Connectors Chart (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Air Conditioner Control Connectors Chart (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
