Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat memory finisher (1). Refer to "REMOVAL AND INSTALLATION ".
  2. Press pawls and remove seat memory switch (2) from seat memory finisher (1).

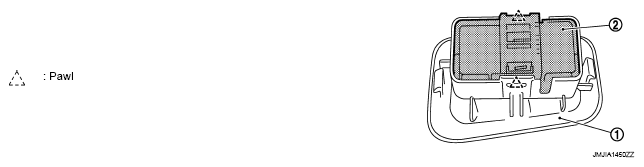

Fig 1: Identifying Seat Memory Switch From Seat Memory Finisher
G05877724Courtesy of NISSAN MOTOR CO., U.S.A.
