Drain Hoses

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

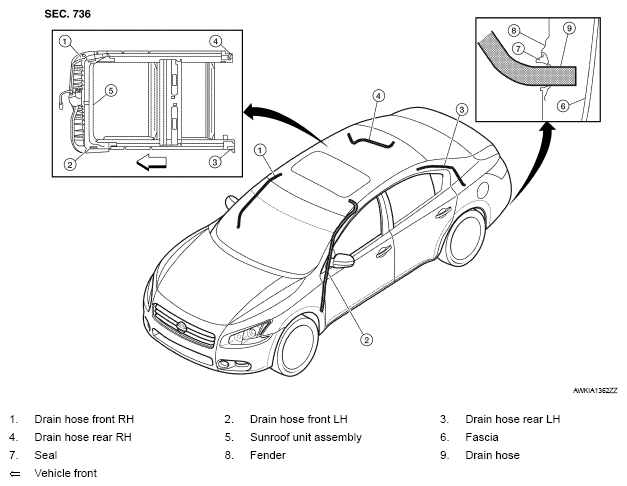

Fig 1: Identifying Drain Hoses Location

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the headlining. Refer to "REMOVAL AND INSTALLATION ".
Visually check drain hoses for:
- Proper connection at sunroof unit assembly drain hose connector(s).
- Damage, pinch, cracks, deterioration.
- Proper fastening and routing on body panels.
Pour water through drain hoses to determine watertight performance.
If damaged or leaking portions in any drain hose is found, replace entire drain hose as necessary.
