Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open glass lid and sunshades.
  2. Remove the headlining. Refer to "REMOVAL AND INSTALLATION ".
  3. Release front sunshade rail (1) from sunshade drive post (2).

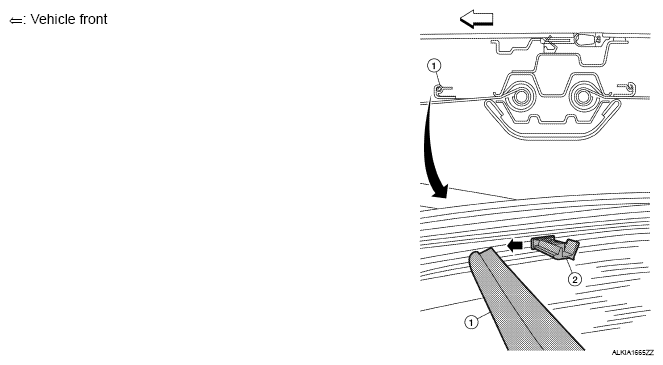

    Fig 1: Identifying Front Sunshade Rail And Sunshade Drive Post
    G05876845Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Repeat sunshade drive post release for the rear sunshade.
  5. Remove side curtain air bag module bolts (two on each RH/LH sides) for access.
  6. Remove the center bracket nuts and bolts, then remove the center brackets (RH/LH).
  7. Remove the sunshade assembly bolts, then lower sunshade assembly and remove from vehicle.
