Inspection and Adjustment: Inspection

Wind Deflector

1. Open glass lid assembly fully.
2. Visually check for proper installation, damaged/deteriorated components, or foreign objects within mechanism. Correct as required for smooth operation.
3. Check for grease at the wind deflector arm (1) and pivot areas. If necessary, apply a sufficient amount of grease for non-binding operation.

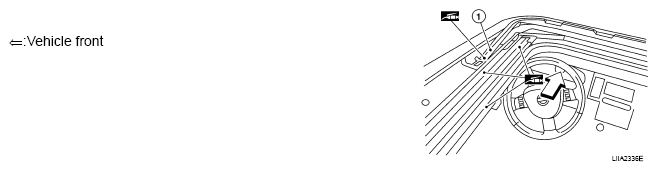

   Fig 1: Identifying Wind Deflector Arm Grease Application Points

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check that the wind deflector (1) moves freely within the sunroof unit assembly while manually pressing down and releasing. If a malfunction is detected, remove the sunroof unit assembly and visually inspect; refer to "INSPECTION AND ADJUSTMENT ". If damage is found, replace either wind deflector (1) or sunroof unit assembly as required.

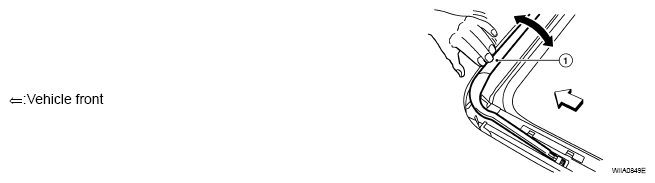

   Fig 2: Checking Wind Deflector

   Courtesy of NISSAN MOTOR CO., U.S.A.

Link And Wire Assembly

1. Check link to determine if coating film has peeled off excessively enough that substrate is visible. Check also to determine if link is the source of noise. Replace as necessary.
2. Visually check to determine if a sufficient amount of grease has been applied to wire or rail groove. If not, add grease as required.
3. Check wire for any damage or deterioration. If any damage is found, replace sunroof unit assembly.

Weatherstrip

1. Visually check weatherstrip for damage, deterioration, or deformation.
   • Open glass lid partially to inspect front edge of weatherstrip.
   • Tilt up glass lid fully to inspect sides and rear edge of weatherstrip.

     If any area of the weatherstrip is found to be damaged, replace as required.

2. Check for leakage around glass lid assembly.
   • Close glass lid assembly.
   • Pour water around surface to determine area of concern.
     • For gaps or misalignment, adjust glass lid to specifications. Refer to "INSPECTION AND ADJUSTMENT ".
     • For damaged sealing surfaces, either replace glass lid weatherstrip, or repair the sealing panel.
