Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Always work with a helper.
Handle glass lid with care to prevent damage.

NOTE: For easier and more accurate installation, always mark each point before removal.

Open sunshade assembly.
Tilt glass lid up, then slide rearward to expose all the glass lid bolts.
Release the slide clip, then remove inner blind (1) RH/LH from the glass lid (2).

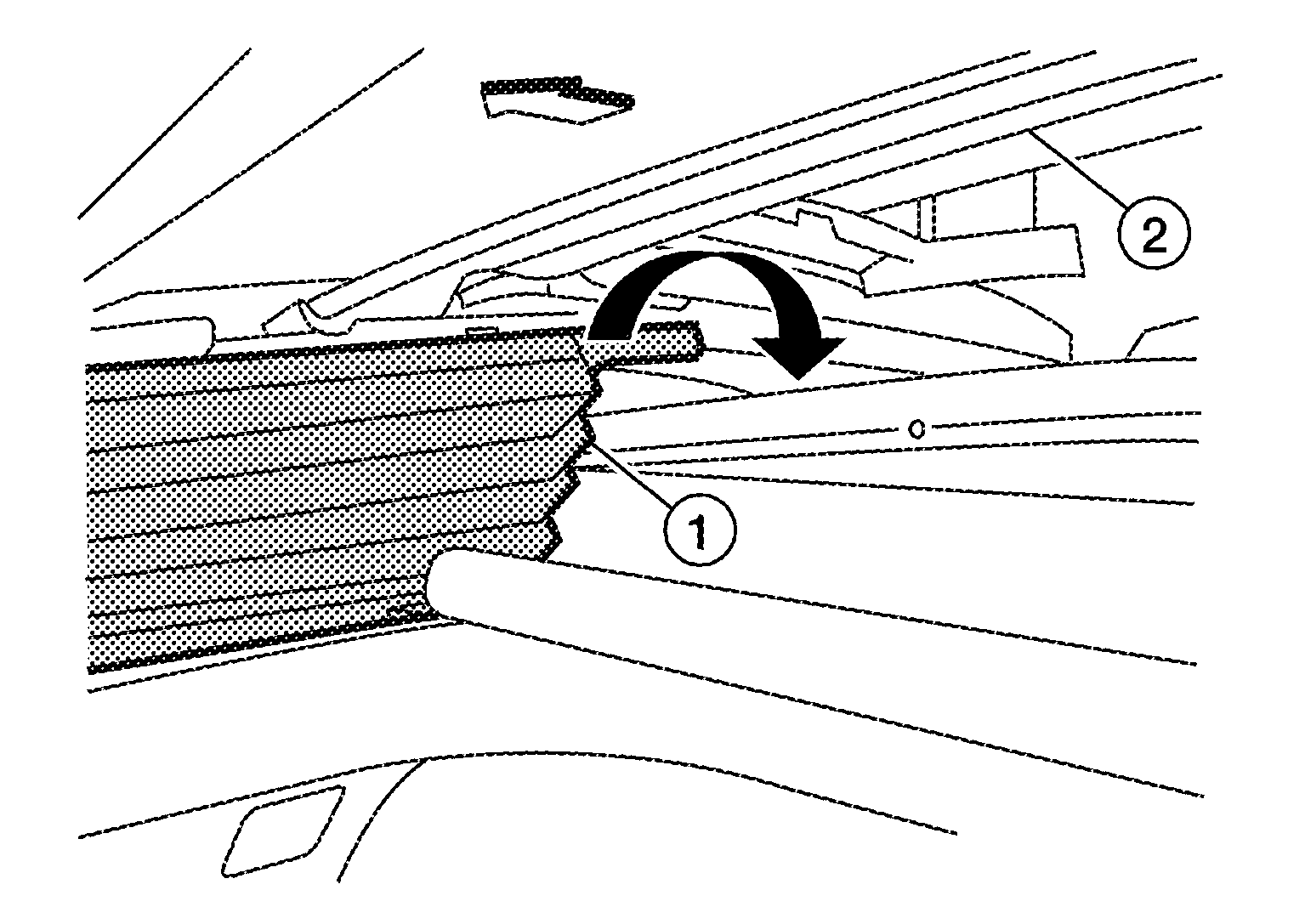

Fig 1: Removing Inner Blind
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the glass lid rear bolts (A), two on both the left and right sides.

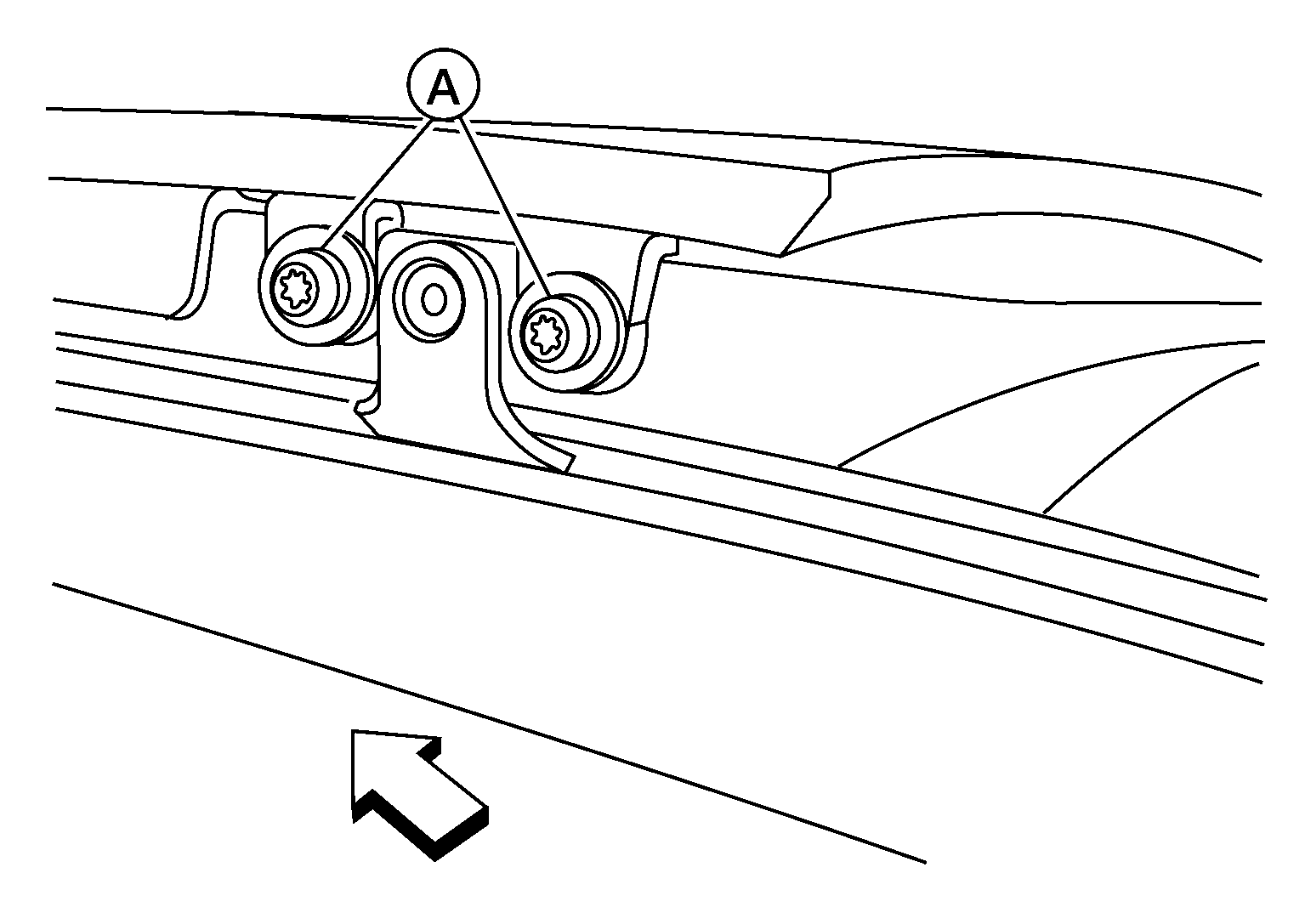

Fig 2: Identifying Glass Lid Rear Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the glass lid front bolts (B), two on both the left and right sides.

Fig 3: Identifying Glass Lid Front Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the glass lid from the vehicle.
