Sunroof Motor Assembly: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

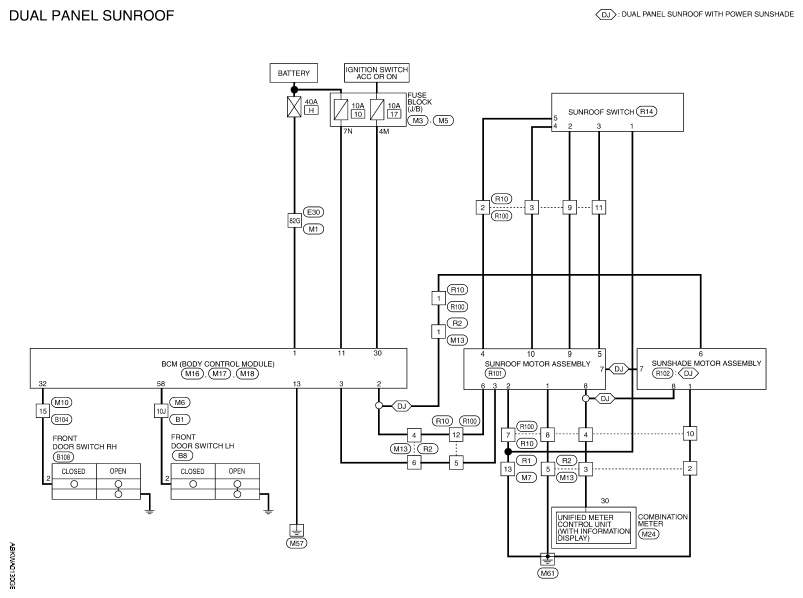

Fig 1: Dual Panel Sunroof - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

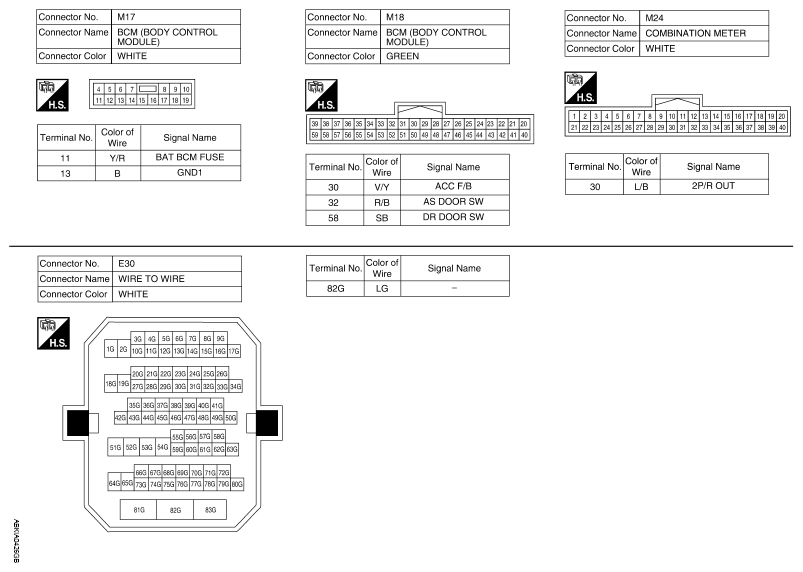

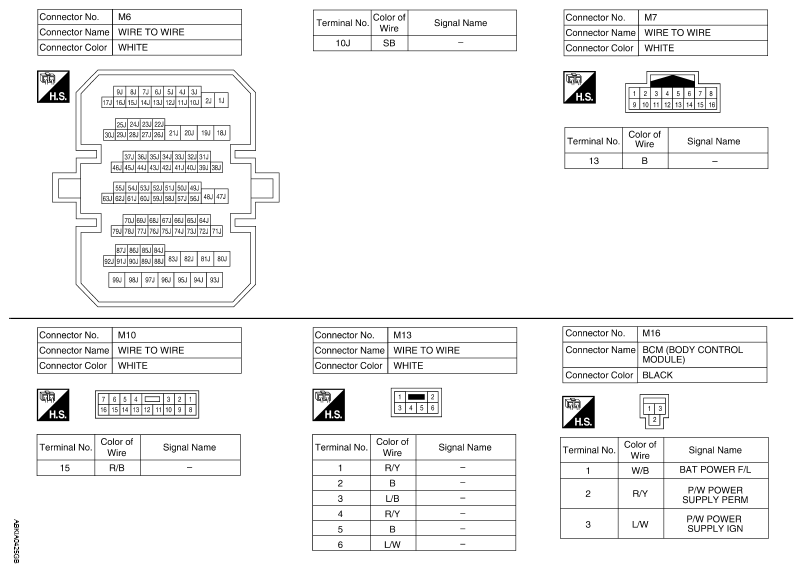

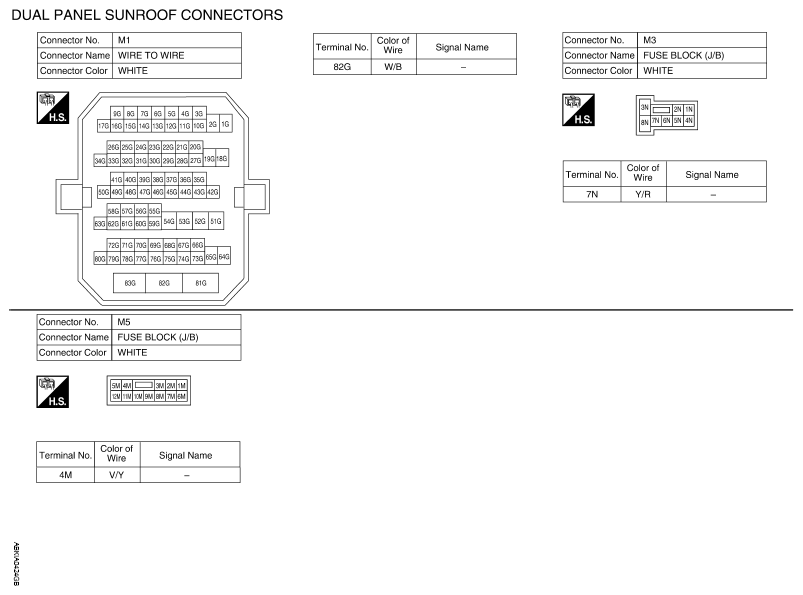

Fig 2: Identifying Dual Panel Sunroof Connector Terminals (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

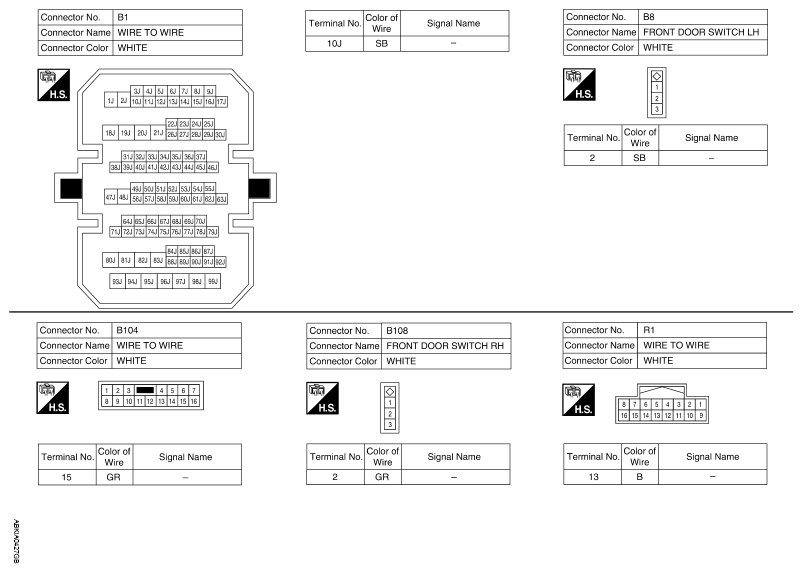

Fig 3: Identifying Dual Panel Sunroof Connector Terminals (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

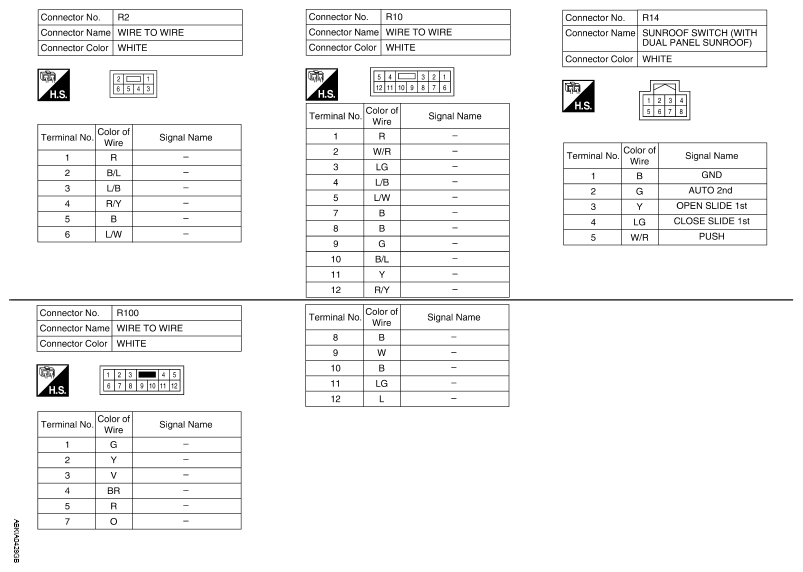

Fig 4: Identifying Dual Panel Sunroof Connector Terminals (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

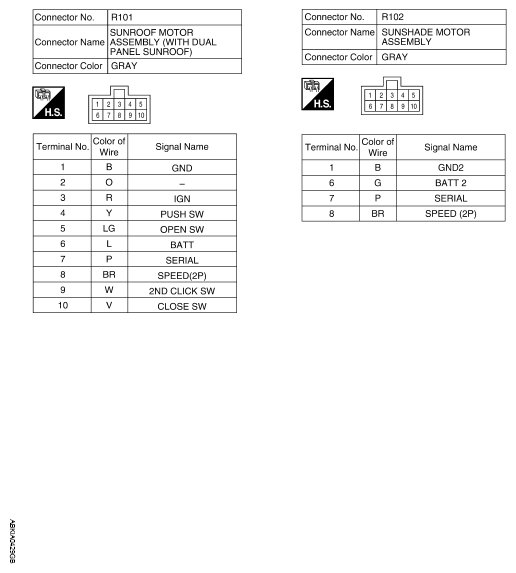

Fig 5: Identifying Dual Panel Sunroof Connector Terminals (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Dual Panel Sunroof Connector Terminals (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Dual Panel Sunroof Connector Terminals (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
