Removal and Installation: Notes

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

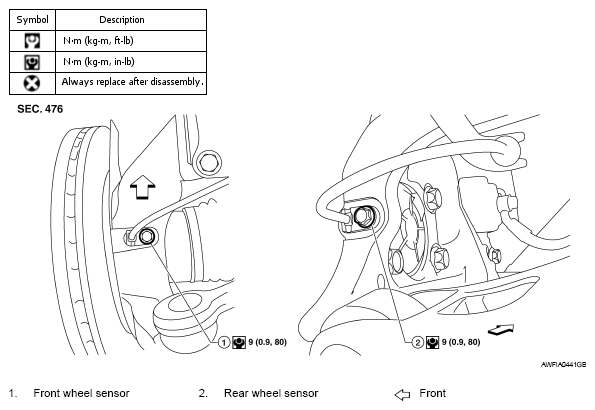

Fig 1: Wheel Sensors Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Be careful not to damage wheel sensor edge and sensor rotor teeth.
When pulling out the wheel sensor, be careful to turn it as little as possible. Do not pull on the wheel sensor harness.
Check if foreign objects such as iron fragments are adhered to the pick-up part of the sensor or to the inside of the hole for the wheel sensor, or if a foreign object is caught in the surface of the mating surface for the wheel sensor. Repair as necessary and then install the wheel sensor.
