Abs Actuator And Electric Unit (Control Unit): Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

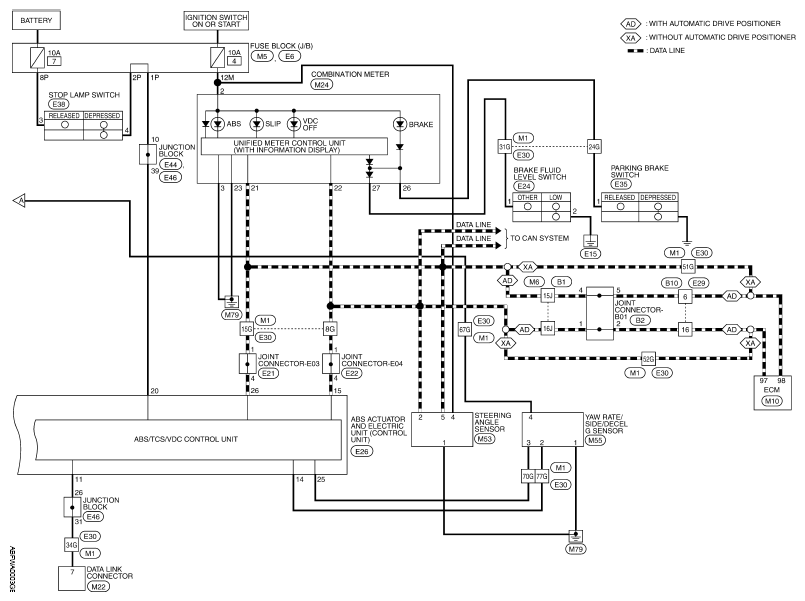

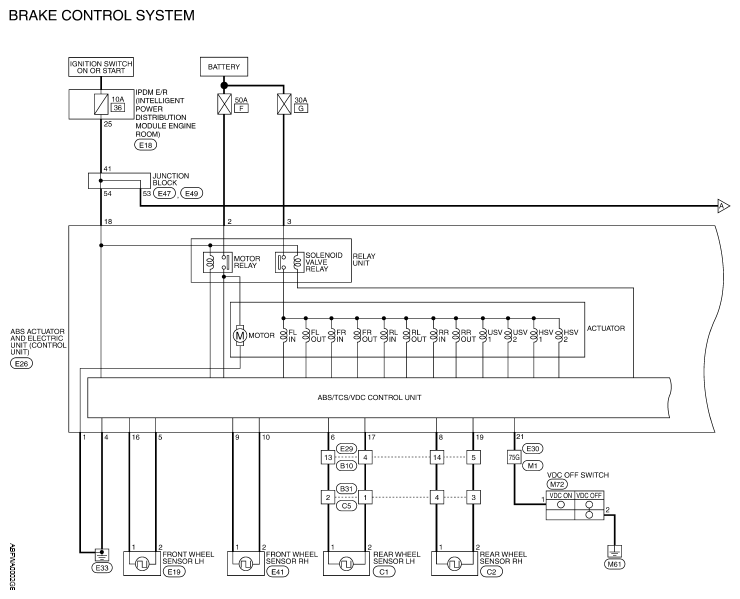

Fig 1: Brake Control System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Brake Control System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

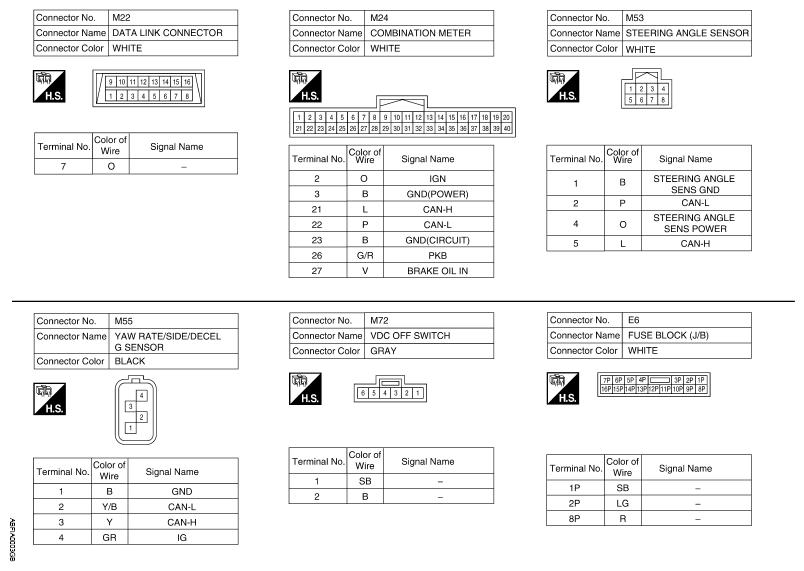

Fig 3: Identifying Brake Control System Connectors (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

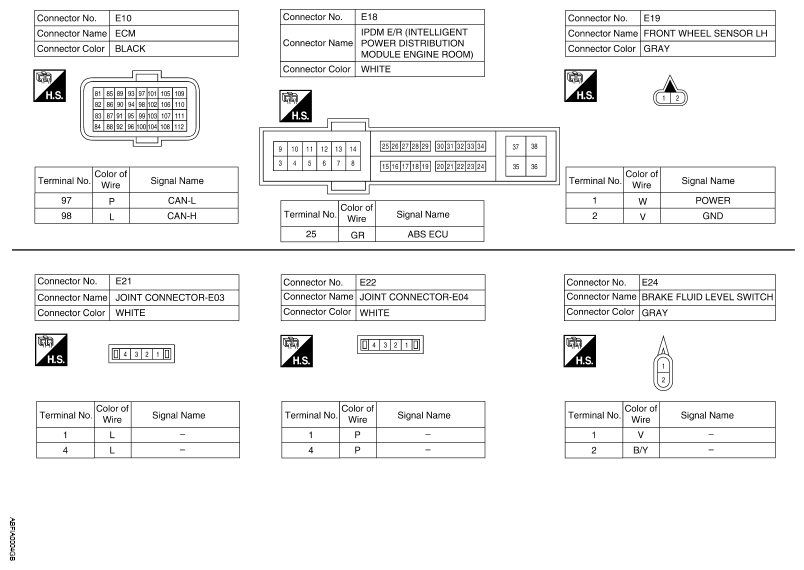

Fig 4: Identifying Brake Control System Connectors (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

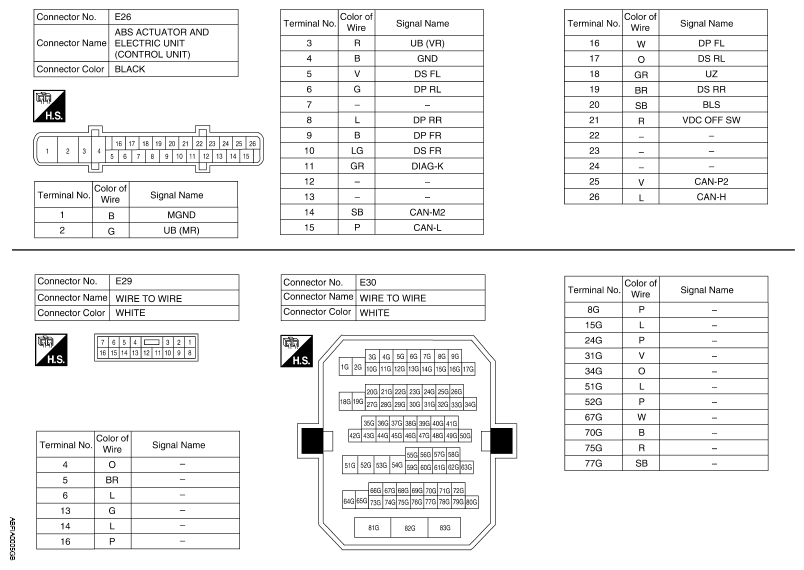

Fig 5: Identifying Brake Control System Connectors (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

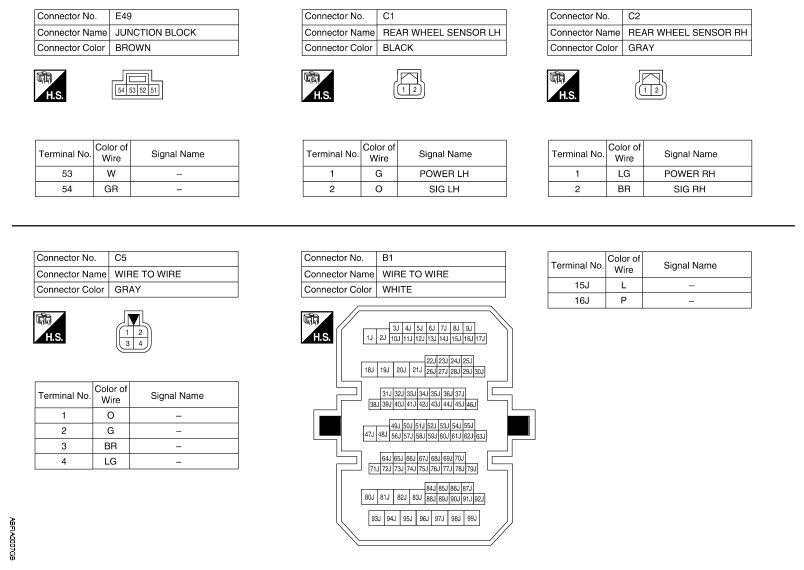

Fig 6: Identifying Brake Control System Connectors (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

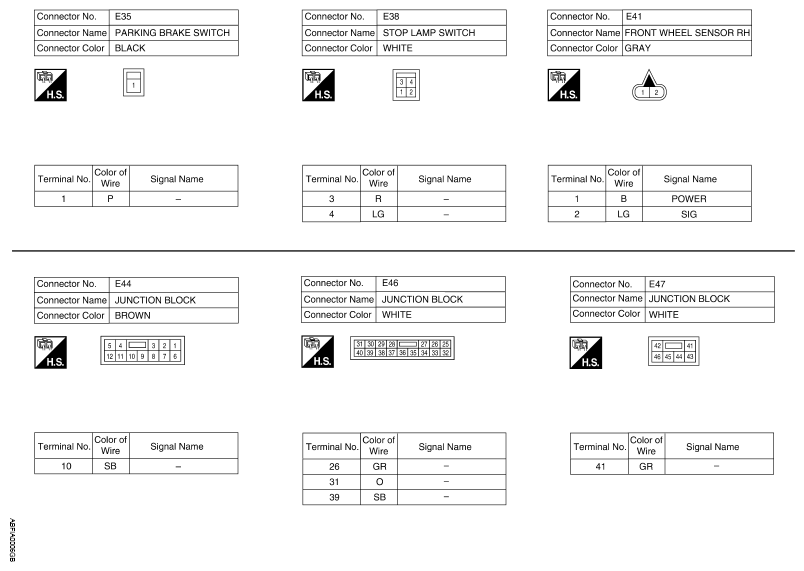

Fig 7: Identifying Brake Control System Connectors (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

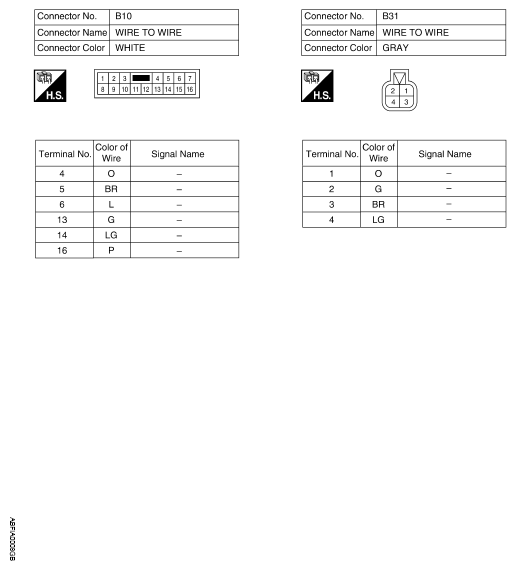

Fig 8: Identifying Brake Control System Connectors (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

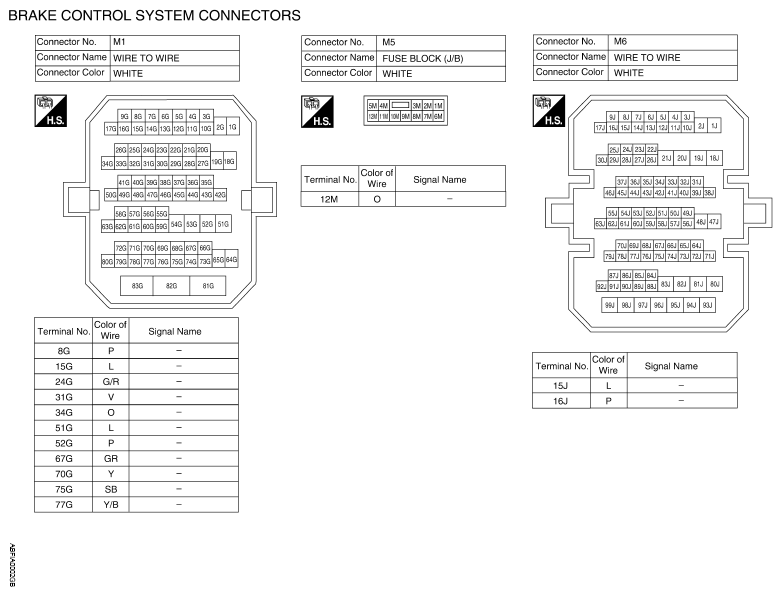

Fig 9: Identifying Brake Control System Connectors (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
