Wiring Diagram - CAN SYSTEM -

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

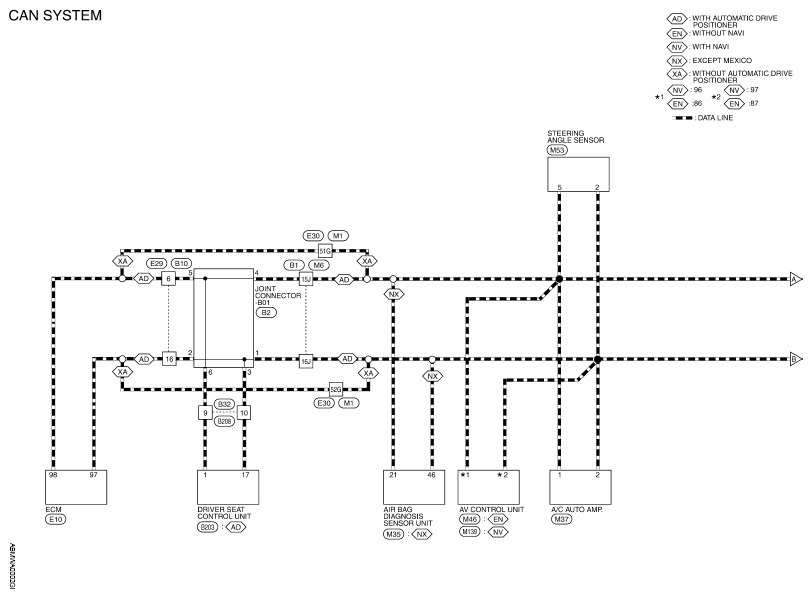

Fig 1: CAN System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

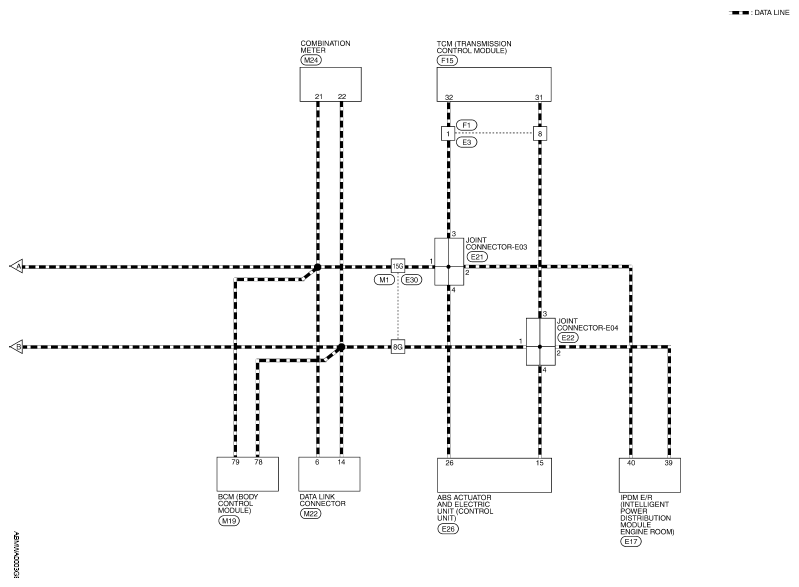

Fig 2: CAN System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

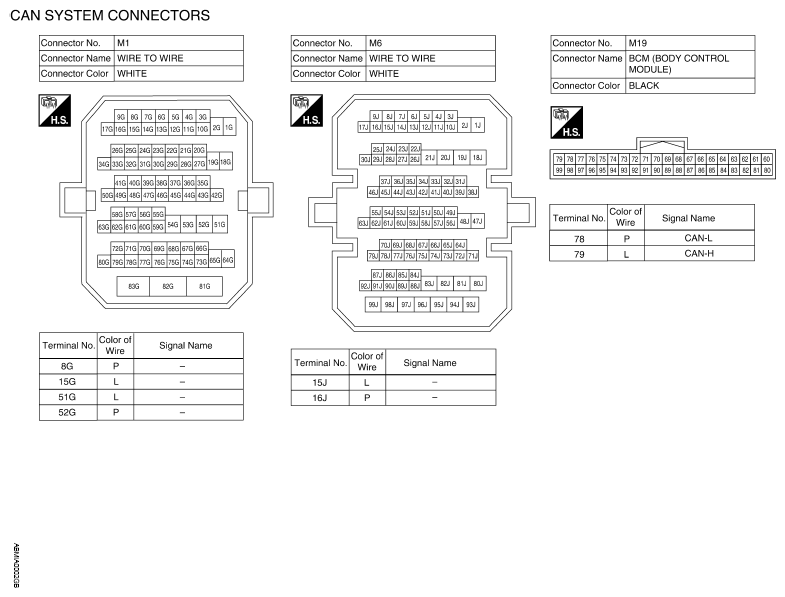

Fig 3: CAN System Connector Terminals (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

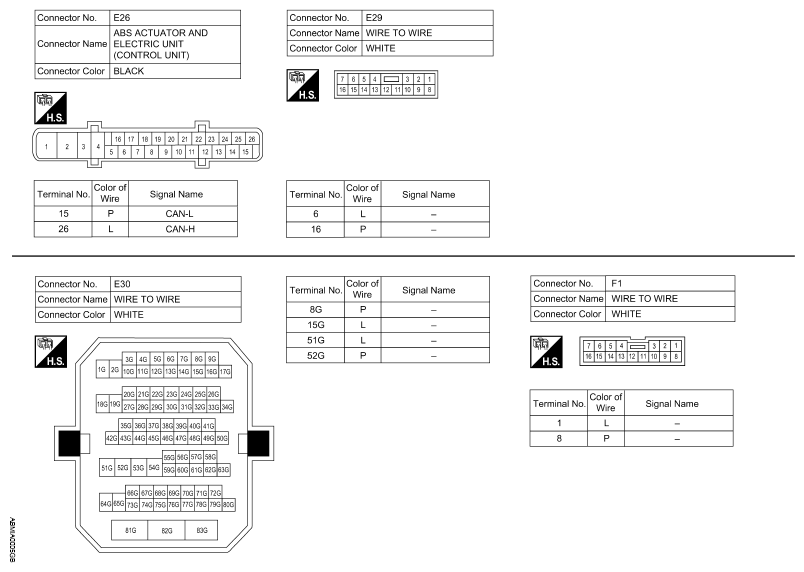

Fig 4: CAN System Connector Terminals (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

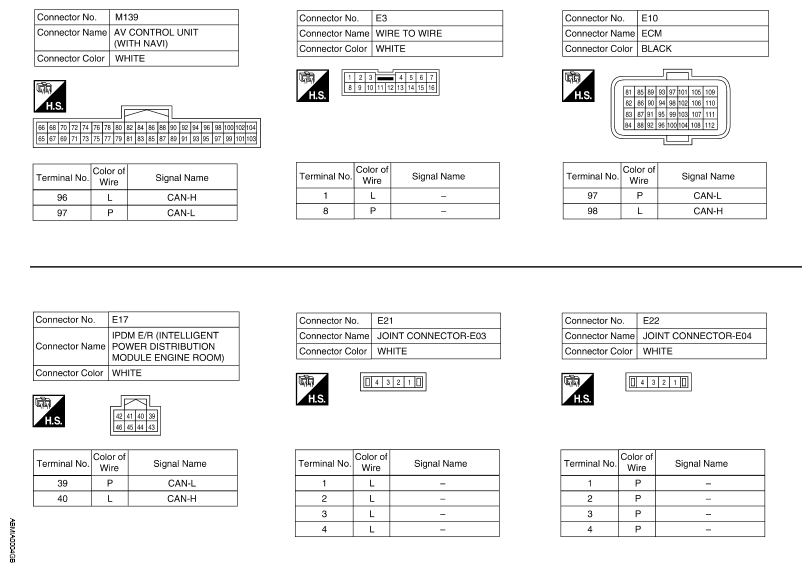

Fig 5: CAN System Connector Terminals (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

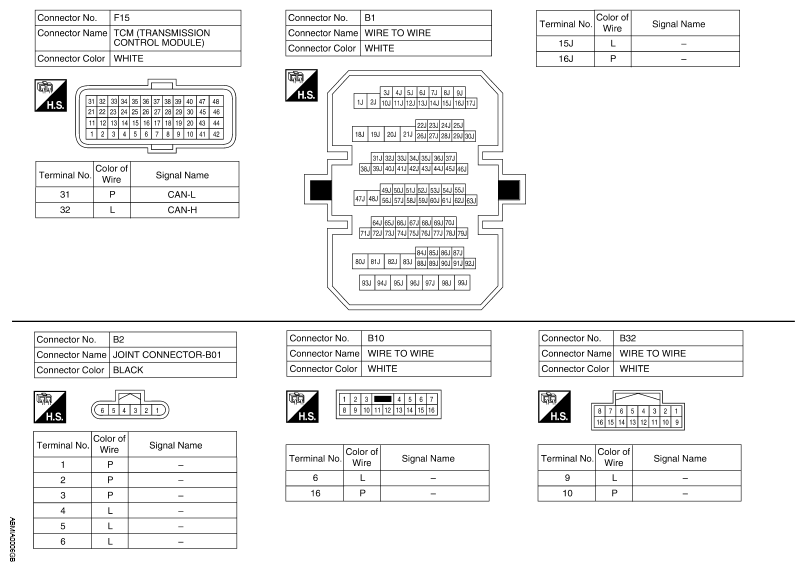

Fig 6: CAN System Connector Terminals (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

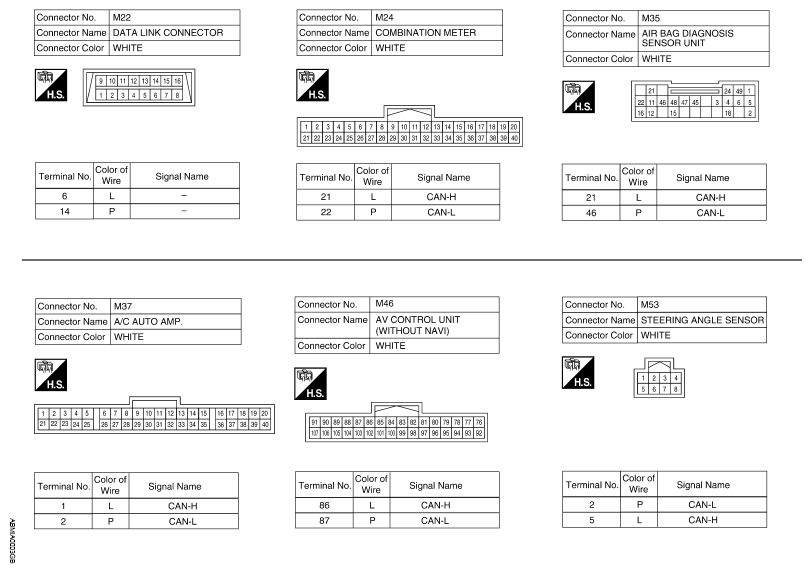

Fig 7: CAN System Connector Terminals (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

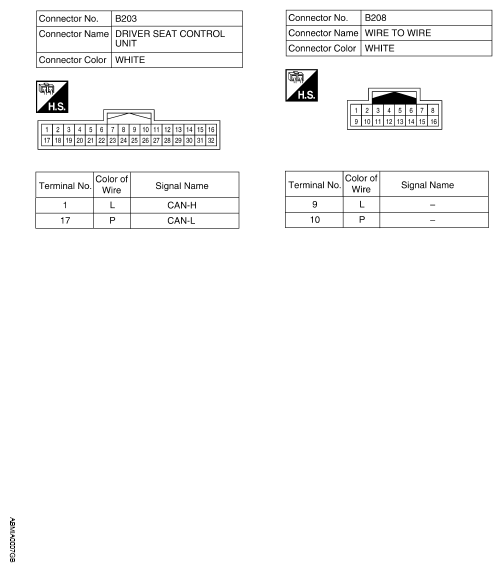

Fig 8: CAN System Connector Terminals (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
